Запчасти Case IH AF4088 (90.150.AC[02]) - CAB FRAME, HEATER ONLY, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

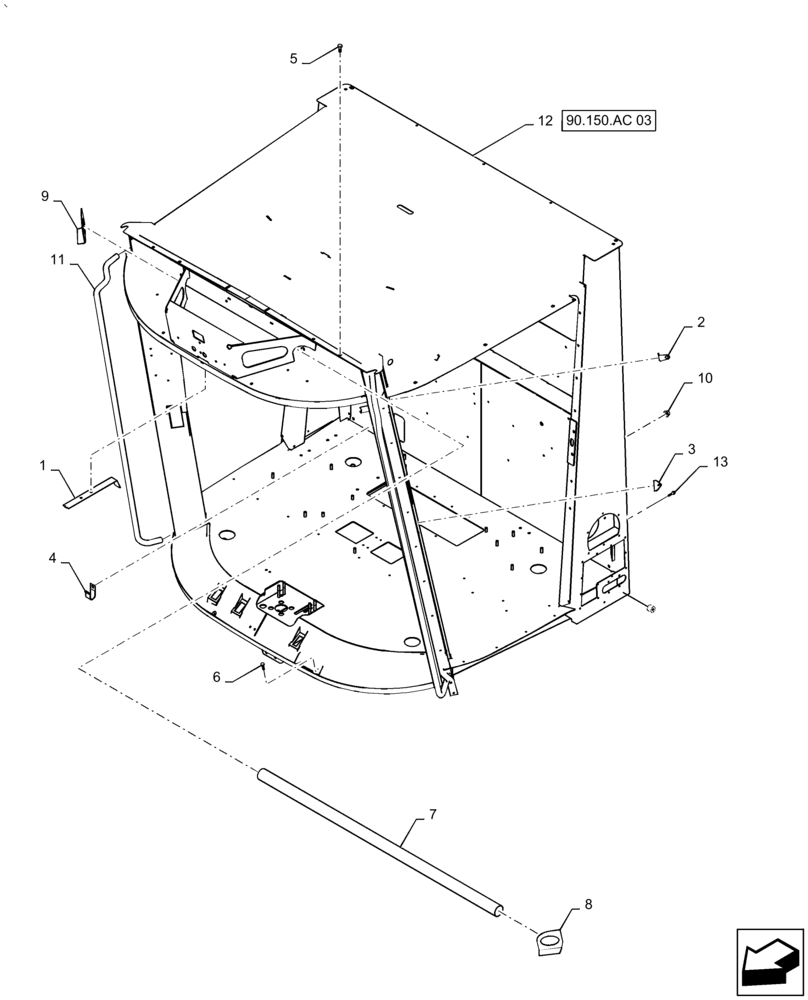

Схема запчастей Case IH AF4088 - (90.150.AC[02]) - CAB FRAME, HEATER ONLY, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
9
8
2
6
11
4
1
90.150.ac 03
5
12
13
3
7

Артикул

Название

Примечание

Количество

1

119608A5

Bracket, Sunvisor

SUPPORT

2шт.

2

119610A2

Bracket

SUPPORT

1шт.

3

NS

NOT SERVICED

Gas Spring Mounting

1шт.

4

97249C1

CLIP

3шт.

5

87015750

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

6

412247

BOLT,Hex, M8 x 25mm, Cl 8.8

4шт.

7

47612574

Lift

TUBE

1шт.

8

47613597

Bracket LH, Lift Tube

SUPPORT

1шт.

9

47613639

Bracket, RH, Lift Tube

SUPPORT

1шт.

10

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

11

47776178

RH, Post

HANDRAIL

1шт.

12

47526498

Assy Cab Completing

FRAME

1шт.

13

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

Flange

1шт.

Выбрано товаров: 13
