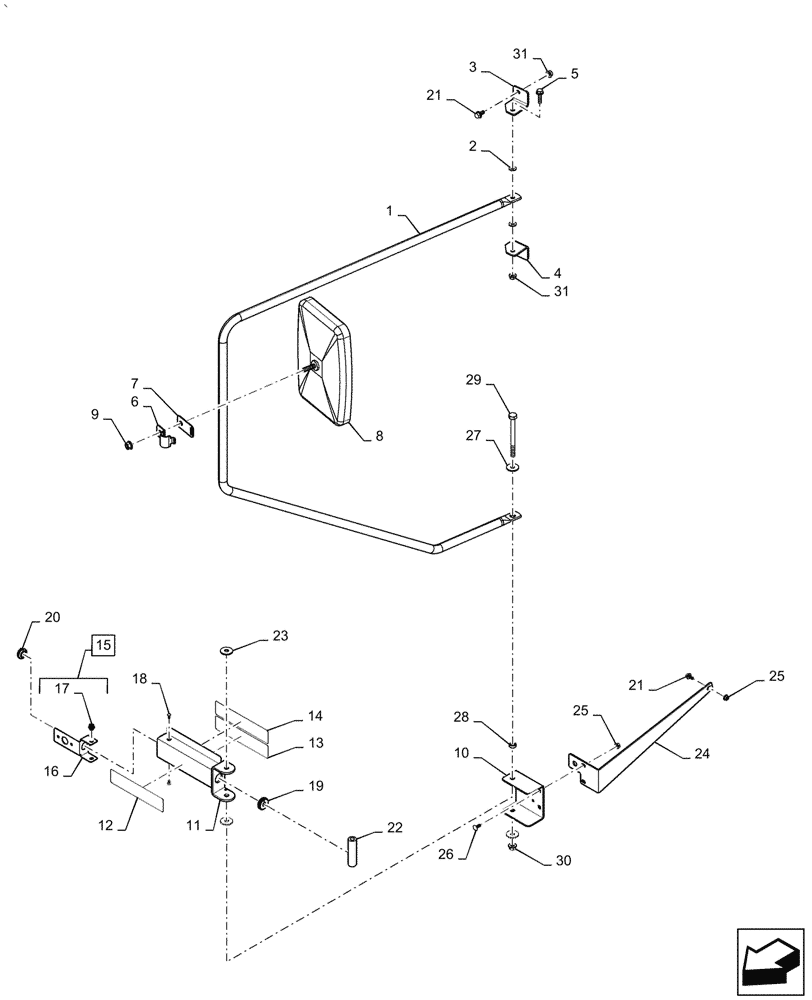

Запчасти Case IH AF4088 (90.118.BM[02]) - MIRROR ASSY, RH, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47894924

Mirror Mount RH

TUBE

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

3

47885071

Mirror Mount

BRACKET

1шт.

4

47885075

Mirror Mount

BRACKET

1шт.

5

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

6

47574738

RH Mirror

CLAMP

1шт.

7

47575270

RH Mirror Clamp

PLATE

1шт.

8

1283403C1

MIRROR

1шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

10

47729747

Warning Light RH

BRACKET

1шт.

11

47630460

Weld Assy, Supporting

ARM

1шт.

12

87105392

REFLECTOR

Retro

1шт.

13

87105393

REFLECTOR

Retro

1шт.

14

87105394

REFLECTOR

Decal

1шт.

15

47661957

Bracket Assy, Warning Light, Incl 16, 17

SUPPORT

1шт.

16

47661896

Bracket, Warning Light

SUPPORT

1шт.

17

NSS

NOT SOLD SEPARAT

Nut, Riveted

2шт.

18

47777682

SCREW

2шт.

19

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

1шт.

20

87742343

GROMMET,.688" x 1"

1шт.

21

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Use for 2015

6шт.

21

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Use from 2016

3шт.

22

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

Tube, Rigid

1шт.

23

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

2шт.

24

47719468

Wall Support Red

BRACKET

1шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

26

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

27

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

28

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

1шт.

29

380423

BOLT,Hex, M12 x 1.75 x 170mm, Cl 8.8

1шт.

30

9706685

NUT,M12 x 1.75, Cl 8

1шт.

31

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.
