Запчасти Case IH AF4088 (90.118.BM[01]) - MIRROR ASSY, LH, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

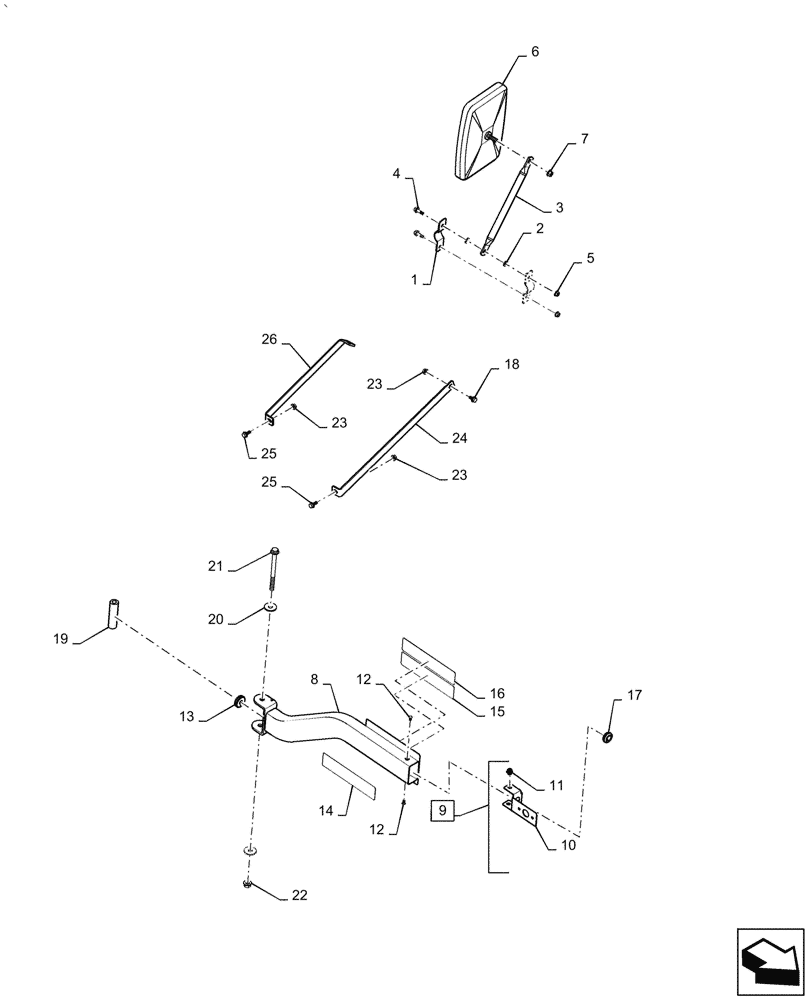

Схема запчастей Case IH AF4088 - (90.118.BM[01]) - MIRROR ASSY, LH, USE FOR 2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
3
14
25
7
19
25
23
16
26
20
17
6
2
23
22
21
5
9
4
12
18
13
11
8
23
1
10
12
24

Артикул

Название

Примечание

Количество

1

47539674

Mirror Mount

CLAMP

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

3

47539655

Mirror Mount LH

TUBE

1шт.

4

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

5

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prev Torque

2шт.

6

1283403C1

MIRROR

1шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

8

47535320

Weld Assy, Supporting

ARM

1шт.

9

47661957

Bracket Assy, Warning Light, Incl 10, 11

SUPPORT

1шт.

10

47661896

Bracket, Warning Light

SUPPORT

1шт.

11

NSS

NOT SOLD SEPARAT

Nut, Riveted

2шт.

12

47777682

SCREW

2шт.

13

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

1шт.

14

87105392

REFLECTOR

Retro

1шт.

15

87105393

REFLECTOR

Retro

1шт.

16

87105394

REFLECTOR

Decal

1шт.

17

87742343

GROMMET,.688" x 1"

1шт.

18

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Use for 2015

6шт.

18

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Use from 2016

1шт.

19

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

Tube, Rigid

1шт.

20

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

2шт.

21

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

Use for 2015

2шт.

21

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

Use from 2016

1шт.

22

86512497

FLANGE NUT,M12 x 1.75, Cl 10

Use for 2015

2шт.

22

86512497

FLANGE NUT,M12 x 1.75, Cl 10

Use from 2016

1шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

24

47531192

Bracket, Wall Support Red

SUPPORT

1шт.

25

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

26

47620865

Cab Air Filter Red

SUPPORT

1шт.

Выбрано товаров: 29
