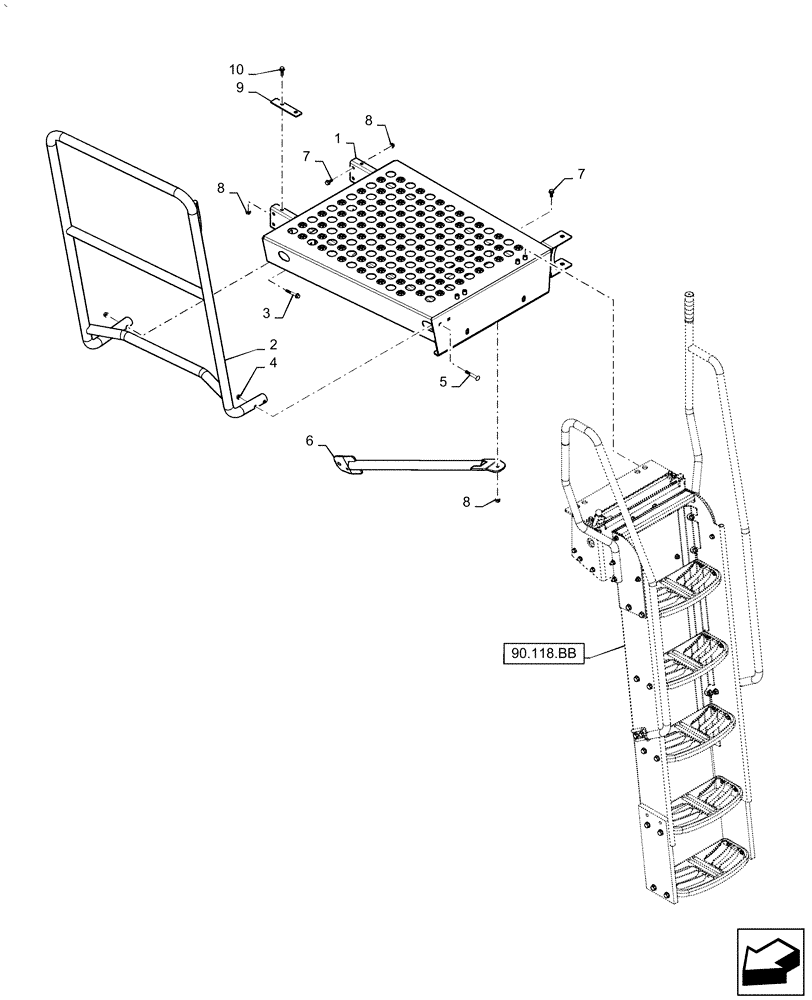

Запчасти Case IH AF4088 (90.118.AC) - PLATFORM, LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47744782

Weld Assy, Operators Deck

PLATFORM

1шт.

2

47511771

Weld Assy, Base

HANDRAIL

1шт.

3

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

2шт.

4

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque

4шт.

5

84319915

CARRIAGE BOLT,M8 x 1.25 x 64.8mm OAL, Cl 10.9

2шт.

6

47511785

Weld Assy, Operators Deck

SUPPORT

1шт.

7

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

9шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

9

47629545

Operators Platform Support

PLATE

1шт.

10

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.
