Запчасти Case IH AF4088 (90.116.AX[04]) - TRIM PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

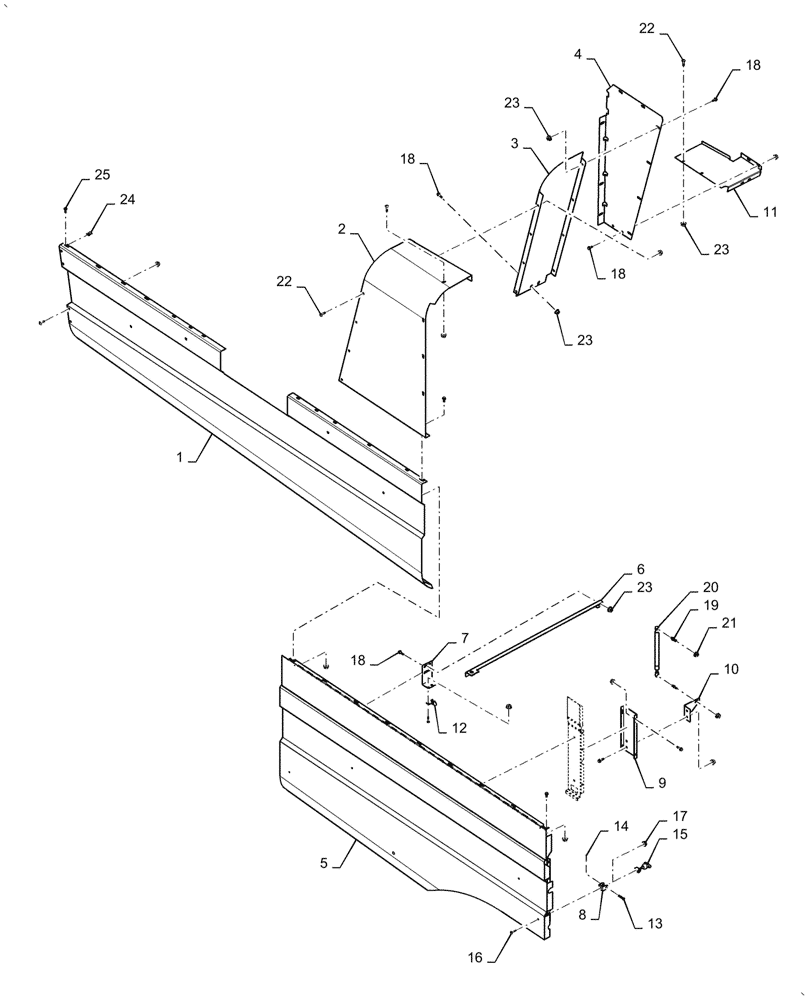

Схема запчастей Case IH AF4088 - (90.116.AX[04]) - TRIM PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
21
2
18
23
8
9
23
20
15
7
18
18
13
11
16
22
23
6
12
24
22
25
10
3
5
17
4
14
23
1
18

Артикул

Название

Примечание

Количество

1

47485765

Assy, Rear Trim Right Side

SHIELD

1шт.

2

47507660

RH, Upper Cover

SHEET

1шт.

3

47507662

RH, Rear Inner Panel

SHEET

1шт.

4

47507664

RH, Upper Cover

SHEET

1шт.

5

47487815

Assy, RH Side Forward

DOOR

1шт.

6

47535138

Linking, Use for 2015

ANGLE

2шт.

6

47849509

Linking, Use from 2016

ANGLE

2шт.

7

47534790

Bracket, Hook Mounting

SUPPORT

2шт.

8

47535172

Bracket, Rubber Hook Anchor

SUPPORT

4шт.

9

47761439

Support, Gas Spring Support, Trim

BRACKET

2шт.

10

47761437

Support, Gas Spring Fixing, Trim

BRACKET

2шт.

11

47464305

Filler, Cooler Box

SHEET

1шт.

12

764071C2

BRACKET

Trim Hook

2шт.

13

728-640

RETAINER

Pin

4шт.

14

87016658

COTTER PIN

4шт.

15

494307C1

LATCH

Hook, Trim Hold Down

4шт.

16

847-3616

SERRATED SCREW,Sl Truss, M6 x 16mm, Cl 10.9

8шт.

17

86511444

FLANGE NUT,Hex, M6 x 1

8шт.

18

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

58шт.

19

1340345C1

BALL STUD

4шт.

20

87757843

GAS STRUT

2шт.

21

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

22

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

31шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

89шт.

24

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

12шт.

25

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

4шт.

Выбрано товаров: 26
