Запчасти Case IH AF4088 (90.116.AX[03]) - TRIM PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

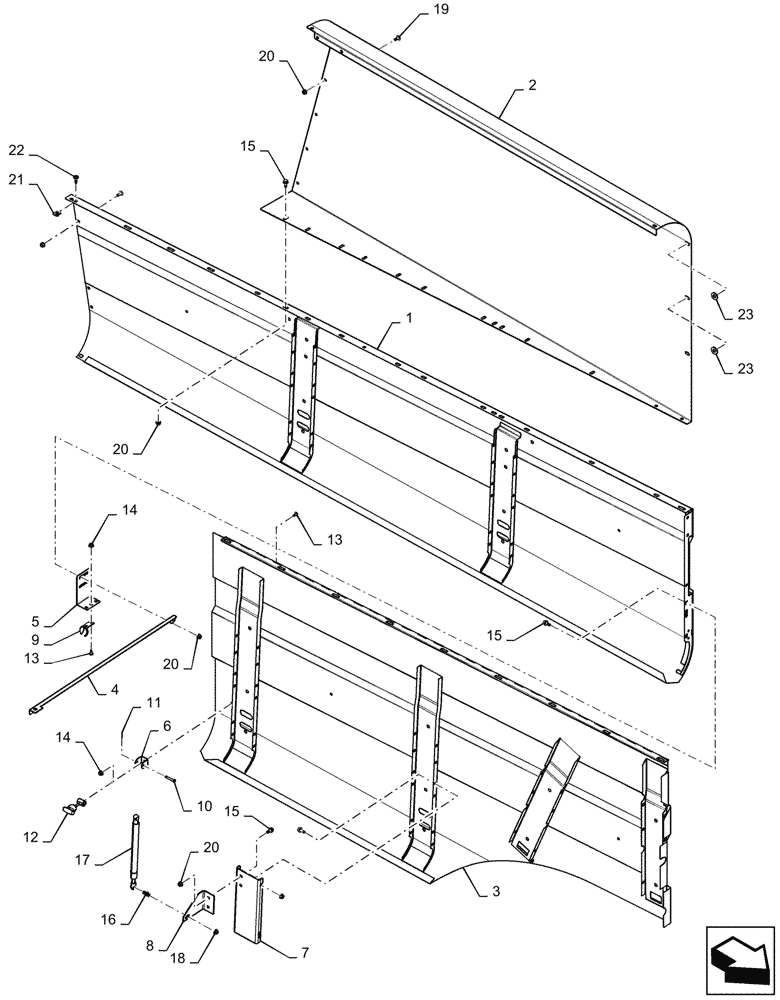

Схема запчастей Case IH AF4088 - (90.116.AX[03]) - TRIM PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
23
14
20
13
12
1
21
5
8
20
13
11
19
20
16
15
15
4
14
23
22
3
6
20
2
10
7
9
18
15

Артикул

Название

Примечание

Количество

1

47485058

Assy, Rear Trim LH

SHIELD

1шт.

2

47458800

LH, Rear Upper Trim

SHEET

1шт.

3

47487789

Assy, LH Side Forward

DOOR

1шт.

4

47535138

Linking, Use for 2015

ANGLE

2шт.

4

47849509

Linking, Use from 2016

ANGLE

2шт.

5

47534790

Bracket, Hook Mounting

SUPPORT

2шт.

6

47535172

Bracket, Rubber Hook Anchor

SUPPORT

4шт.

7

47761439

Support, Gas Spring, Trim

BRACKET

2шт.

8

47761437

Support, Gas Spring Fixing, Trim

BRACKET

2шт.

9

764071C2

BRACKET

Trim Hook

2шт.

10

728-640

RETAINER

Pin

4шт.

11

87016658

COTTER PIN

4шт.

12

494307C1

LATCH

Hook, Trim Hold Down

4шт.

13

847-3616

SERRATED SCREW,Sl Truss, M6 x 16mm, Cl 10.9

8шт.

14

86511444

FLANGE NUT,Hex, M6 x 1

8шт.

15

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

58шт.

16

1340345C1

BALL STUD

4шт.

17

87757843

GAS STRUT

2шт.

18

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

19

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

31шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use for 2015

89шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use from 2016

84шт.

21

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

12шт.

22

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

Use from 2016

12шт.

23

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

Use from 2016

2шт.

Выбрано товаров: 25
