Запчасти Case IH AF4088 (90.105.CA[02]) - ENGINE SHIELD, SERVICE SUPPORT DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

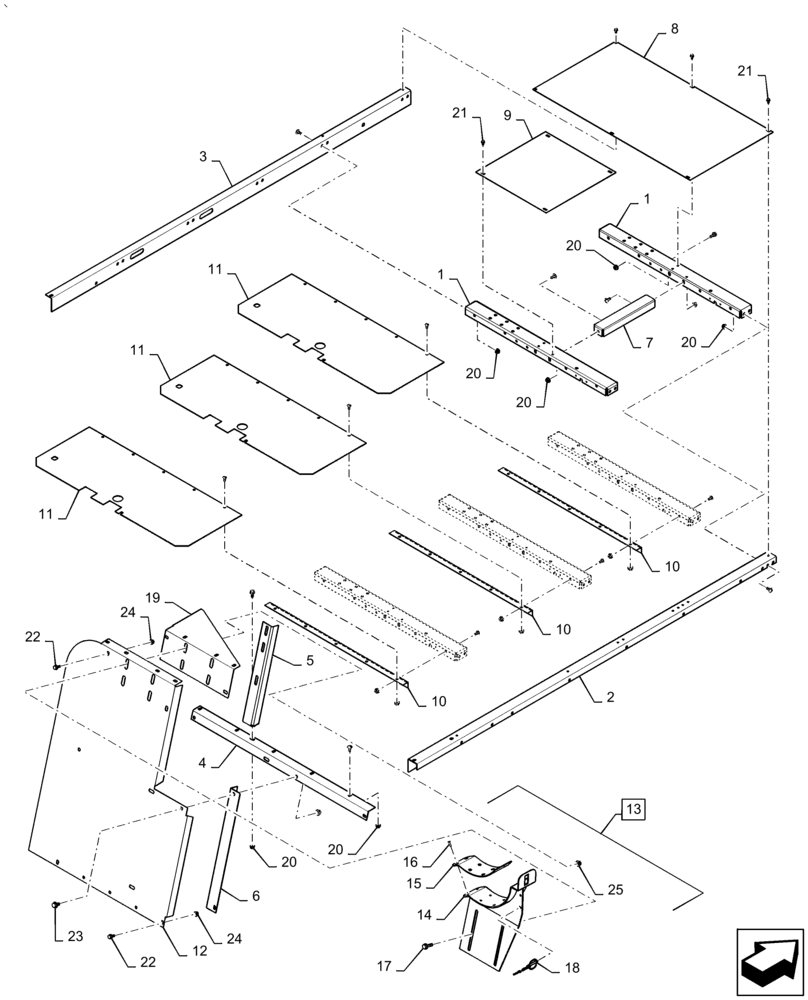

Схема запчастей Case IH AF4088 - (90.105.CA[02]) - ENGINE SHIELD, SERVICE SUPPORT DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS
25
11
22
16
22
4
24
23
7
14
20
10
19
20
1
17
20
18
2
10
9
15
8
3
10
1
5
20
20
21
20
12
6
13
24
21
11
11

Артикул

Название

Примечание

Количество

1

47463044

Engine Deck Channel

SUPPORT

5шт.

2

47747155

Service Deck

CHANNEL

1шт.

3

47463063

Deck Support, LH

ANGLE

1шт.

4

47463065

Engine Deck Rear

SUPPORT

1шт.

5

47463078

Rear Engine Deck

SUPPORT

1шт.

6

47463067

Rear, Engine Trim Support

ANGLE

1шт.

7

47463069

Service Deck Support

CHANNEL

1шт.

8

47463071

Deck Engine Compression

PLATE

1шт.

9

47463073

Deck Engine Compression

PLATE

1шт.

10

47463074

Drive Housing

HINGE

3шт.

11

47463076

Service Deck

SUPPORT

3шт.

12

47464288

LH, Rear Engine Trim

SUPPORT

1шт.

13

47478074

Assy, Unloader Saddle, Incl 14 - 18, 25

SUPPORT

1шт.

14

47478075

Weld Assy, Unloader Tube Saddle

SUPPORT

1шт.

15

47478073

Unloader Tube Saddle

PAD

1шт.

16

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

8шт.

17

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

4шт.

18

87106279

PIN,6.4mm OD

2шт.

19

47464290

LH, Rear Upper Shield

SUPPORT

1шт.

20

145458

SERRATED NUT,5/16"-18 GR 5 ZND

28шт.

21

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

10шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

38шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

39шт.

25

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

Выбрано товаров: 25
