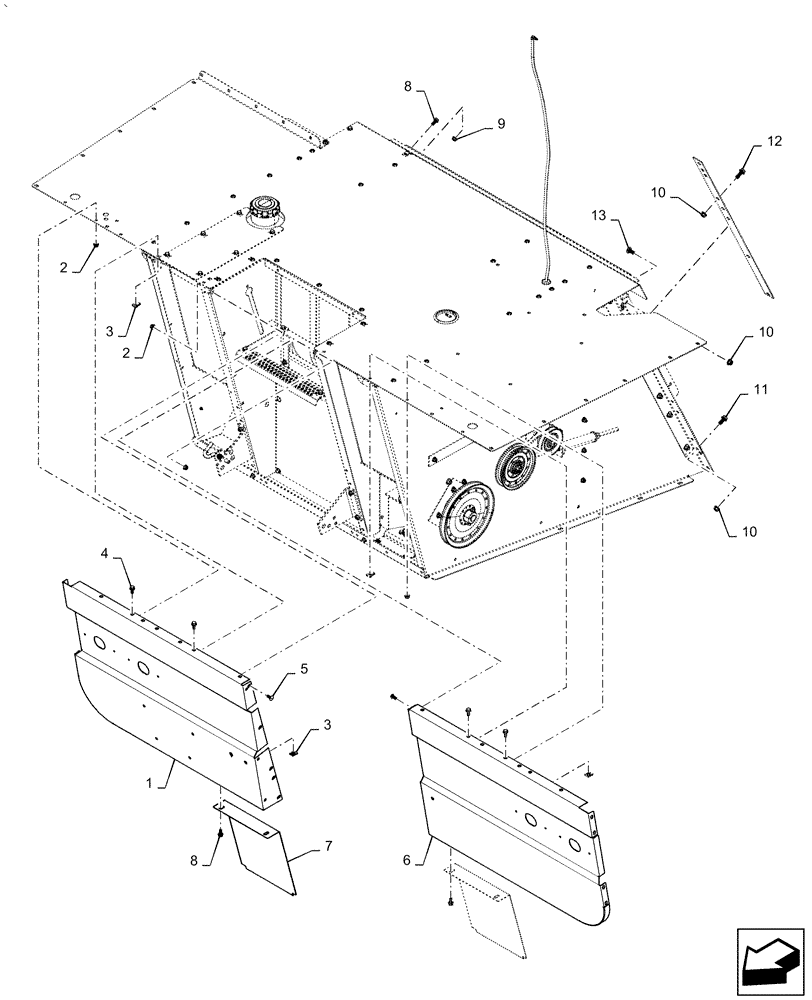

Запчасти Case IH AF4088 (90.100.BI[04]) - PANEL, ASSY, HOOD, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47477679

Tail Lamp LH, Rear, Use for 2015

SHEET

1шт.

1

47870840

Tail Lamp LH, Rear, Use from 2016

SHEET

1шт.

2

86507066

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

3

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

8шт.

4

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

8шт.

5

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

8шт.

6

47477682

Tail Lamp RH, Rear, Use for 2015

SHEET

1шт.

6

47870839

Tail Lamp RH, Rear, Use from 2016

SHEET

1шт.

7

47478209

Rear Hood Access Panel

SHEET

2шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

6шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

22шт.

11

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

12

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

6шт.

13

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

8шт.
