Запчасти Case IH AF4088 (90.100.BI[03]) - HOOD ASSY, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

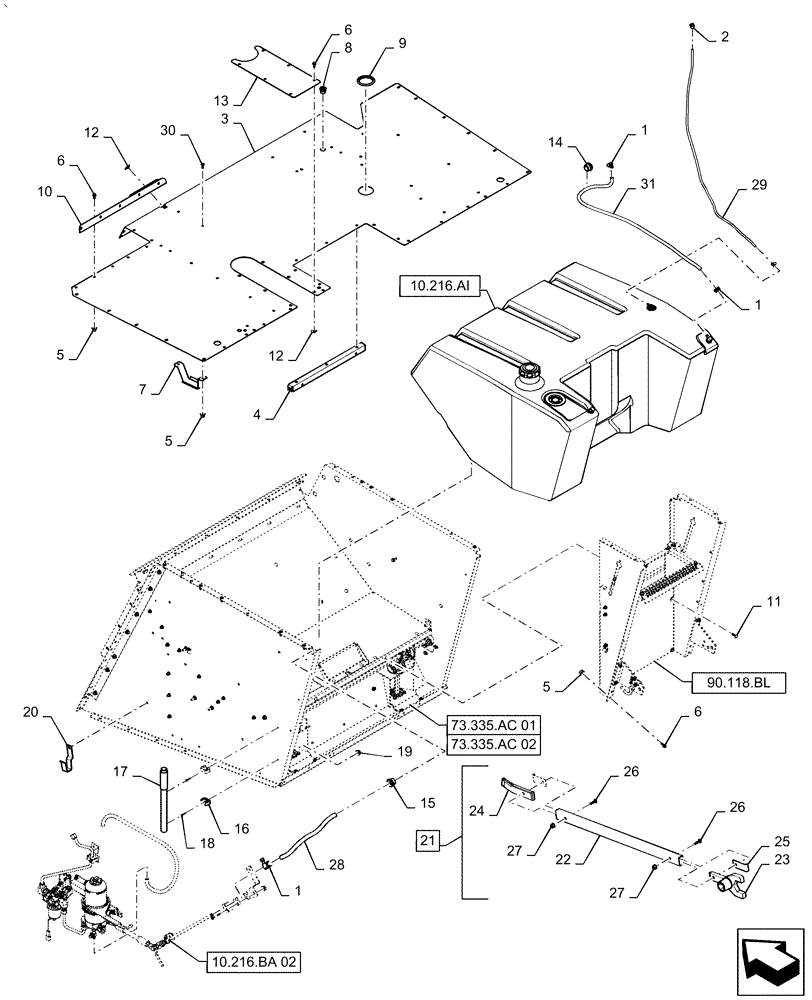

Схема запчастей Case IH AF4088 - (90.100.BI[03]) - HOOD ASSY, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
10.216.ba 02
6
26
4
29
26
5
2
10
1
1
8
5
6
14
12
11
15
1
19
18
17
3
6
13
31
28
30
7
24
27
20
16
27
12
23
5
21
25
22
9
10.216.ai
73.335.ac 01
73.335.ac 02
90.118.bl

Артикул

Название

Примечание

Количество

1

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Gear

2шт.

3

47757172

Sheet Rear Hood Treadplate

SHEET

1шт.

4

47478296

Service Deck Rear Support

ANGLE

1шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

35шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

19шт.

7

47478298

Weld Assy, Fuel Tank

STOP

2шт.

8

195803C1

GROMMET

1шт.

9

87000778

PLUG,89mm OD

1шт.

10

47623220

Bracket, Service Deck

SUPPORT

1шт.

11

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

12

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

10шт.

13

47478306

Engine Service Cover

PLATE

1шт.

14

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

1шт.

15

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

1шт.

16

106744A1

CLIP

2шт.

17

106743A1

HANDLE

Sieve Extension

1шт.

18

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

2шт.

19

43440

LOCK NUT,M5 x .8, Cl 8

Prevailing Torque, All Metal

2шт.

20

47659823

Rocking Wrench

CLIP

2шт.

21

47651899

Rocking Handle Assembly, Incl 22 - 27

ADJUSTING WRENCH

1шт.

22

47651898

Rocking Wrench

HANDLE

1шт.

23

1979527C1

WRENCH-HOOK

Rocking Head

1шт.

24

1979751C2

BAR

1шт.

25

47651896

Rocking Wrench

SHIM

2шт.

26

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

2шт.

27

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

Serrated

2шт.

28

87643631

HOSE

LH Hitch Cylindrical Drain

1шт.

29

87302584

SLEEVE,9.52 mm OD x 1475 mm L

1шт.

30

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

24шт.

31

87404885

FUEL HOSE,9.53 mm ID x 1250.00 mm

Return

1шт.

Выбрано товаров: 31
