Запчасти Case IH AF4088 (90.100.BI[02]) - HOOD ASSY, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

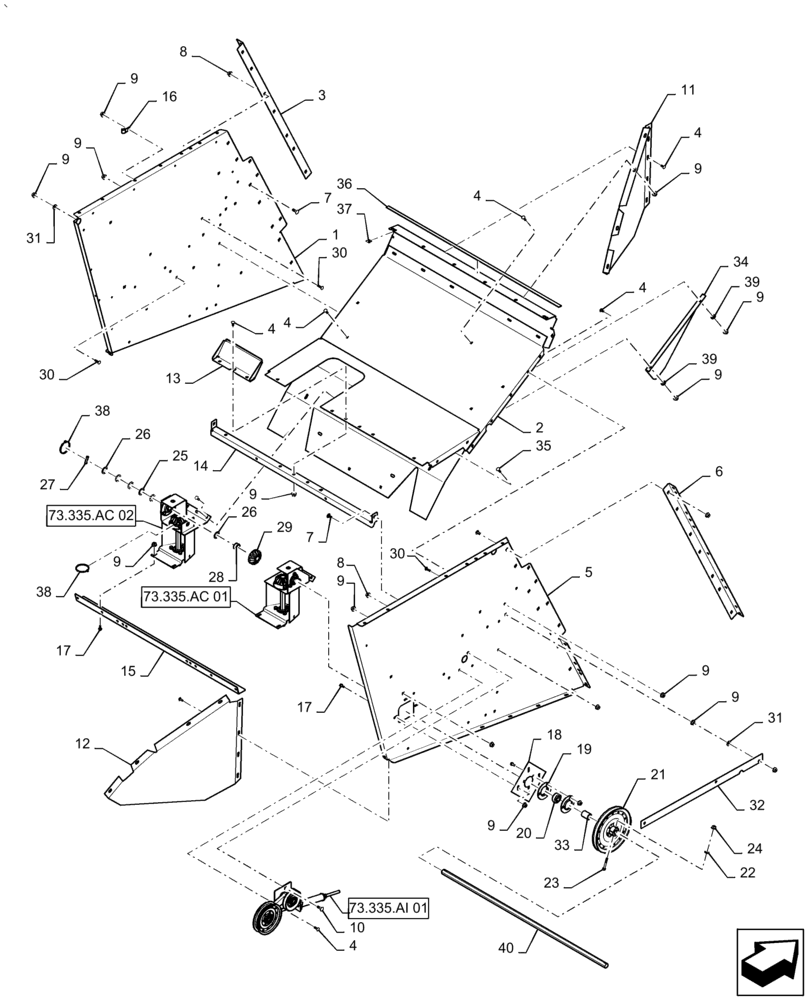

Схема запчастей Case IH AF4088 - (90.100.BI[02]) - HOOD ASSY, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
36
13
17
20
9
33
1
30
9
7
8
10
16
21
35
5
26
18
31
7
29
40
27
31
3
9
9
9
4
12
9
38
39
34
73.335.ai 01
4
23
4
30
15
9
39
30
32
4
9
9
9
26
22
73.335.ac 02
9
9
4
19
14
25
4
17
28
73.335.ac 01
11
37
38
6
24
8

Артикул

Название

Примечание

Количество

1

47478215

Rear Hood, LH

SHEET

1шт.

2

47478217

Weld Assy, Fuel Tank

SUPPORT

1шт.

3

47478212

Side Sheet Attachment, LH

ANGLE

1шт.

4

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

43шт.

5

47478222

Rear Hood, RH

SHEET

1шт.

6

47478224

Side Sheet Attach, RH

ANGLE

1шт.

7

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

16шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

17шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

67шт.

10

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

1шт.

11

47478230

LH

SUPPORT

1шт.

12

47478234

RH

SUPPORT

1шт.

13

47478238

Retainer, Fuel Tank

STOP

1шт.

14

47478240

Separator Hood

ANGLE

1шт.

15

47478242

Rear Hood Support Rail

ANGLE

1шт.

16

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

11шт.

18

47478258

Straw Spreader Bearing

PLATE

1шт.

19

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Spherical, Housing

2шт.

20

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

1шт.

21

87757148

PULLEY

Straw Spreader

1шт.

22

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

1шт.

23

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

24

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque

1шт.

25

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

4шт.

26

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

9шт.

27

87040620

LOCK PIN,9.53mm OD x 38.1mm L, Slotted

1шт.

28

87036414

SPACER,26.21mm ID x 31.75mm OD x 15.88mm L

2шт.

29

87375653

GEAR

Bevel Spreader Drive

2шт.

30

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

7шт.

31

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

32

47478260

Spreader Drive Shield

PLATE

1шт.

33

47519295

Tube

SPACER

1шт.

34

47478266

Rotor Discharge

DEFLECTOR

1шт.

35

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

3шт.

36

419957A1

SEAL

1шт.

37

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

6шт.

38

289862C1

CABLE TIE,3/16" x 7"

6шт.

39

131-440

PUSH-ON NUT

5шт.

40

427271A1

SHAFT

Straw SPDR Cross

1шт.

Выбрано товаров: 40
