(88.100.66[04]) - DIA KIT, ROUND BAR CONCAVE FRONT

Запчасти Case IH AF4088 (88.100.66[04]) - DIA KIT, ROUND BAR CONCAVE FRONT (88) - ACCESSORIES

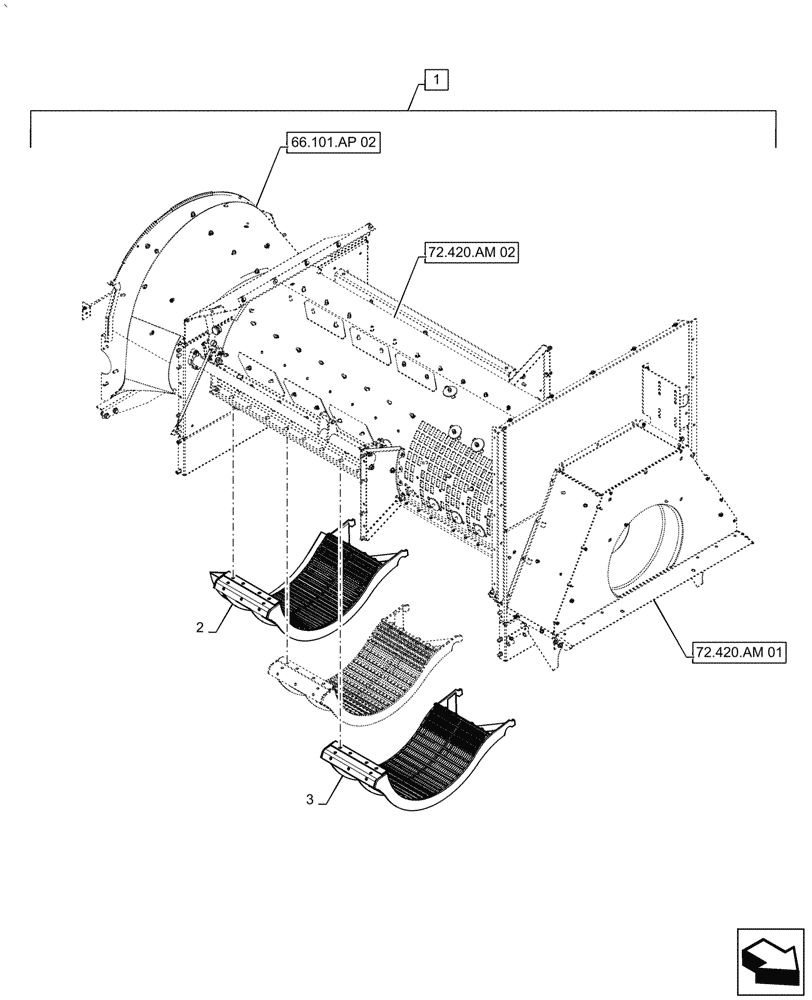

Схема запчастей Case IH AF4088 - (88.100.66[04]) - DIA KIT, ROUND BAR CONCAVE FRONT (88) - ACCESSORIES
72.420.am 02
2
3
1
72.420.am 01
66.101.ap 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47627315

Concave Round Bar, Set of 3, Incl 2, 3

DIA KIT, HARVESTER

1шт.

2

47402820

ROUND BAR CONCAVE

Assy, Front, Use for 2015

1шт.

2

47911474

Weld Assy, Front, Use from 2016

CONCAVE

1шт.

3

47402821

ROUND BAR CONCAVE

Assy, Use for 2015

2шт.

3

47911475

Weld Assy, Use from 2016

CONCAVE

2шт.
