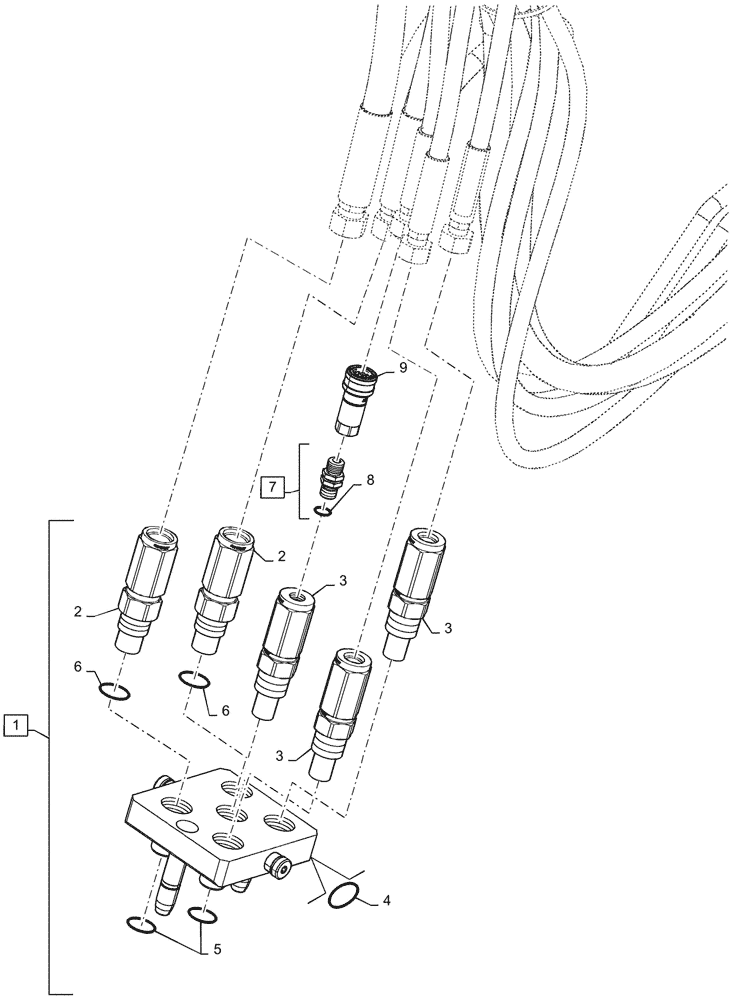

Запчасти Case IH AF4088 (88.100.35[05]) - DIA KIT, HYDRAULIC REEL DRIVE (88) - ACCESSORIES

1

47870715

QUICK MALE COUPLING

Incl 2 - 6

1шт.

2

47360258

QUICK MALE COUPLING

2шт.

3

47870683

QUICK MALE COUPLING

3шт.

4

86623900

REPAIR KIT

Rebuild

1шт.

5

86623898

SEAL,1mm OD x 3.2mm Thk

2шт.

6

86623899

SEAL KIT,13mm OD x 2.5mm Thk

4шт.

7

9846669

HYD CONNECTOR,9/16" - 18 Male x 9/16" - 18 Male

Union, Incl 8

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

86592081

COUPLING, QUICK, FEM

1шт.
