Запчасти Case IH AF4088 (88.100.35[03]) - DIA KIT, HYDRAULIC REEL DRIVE (88) - ACCESSORIES

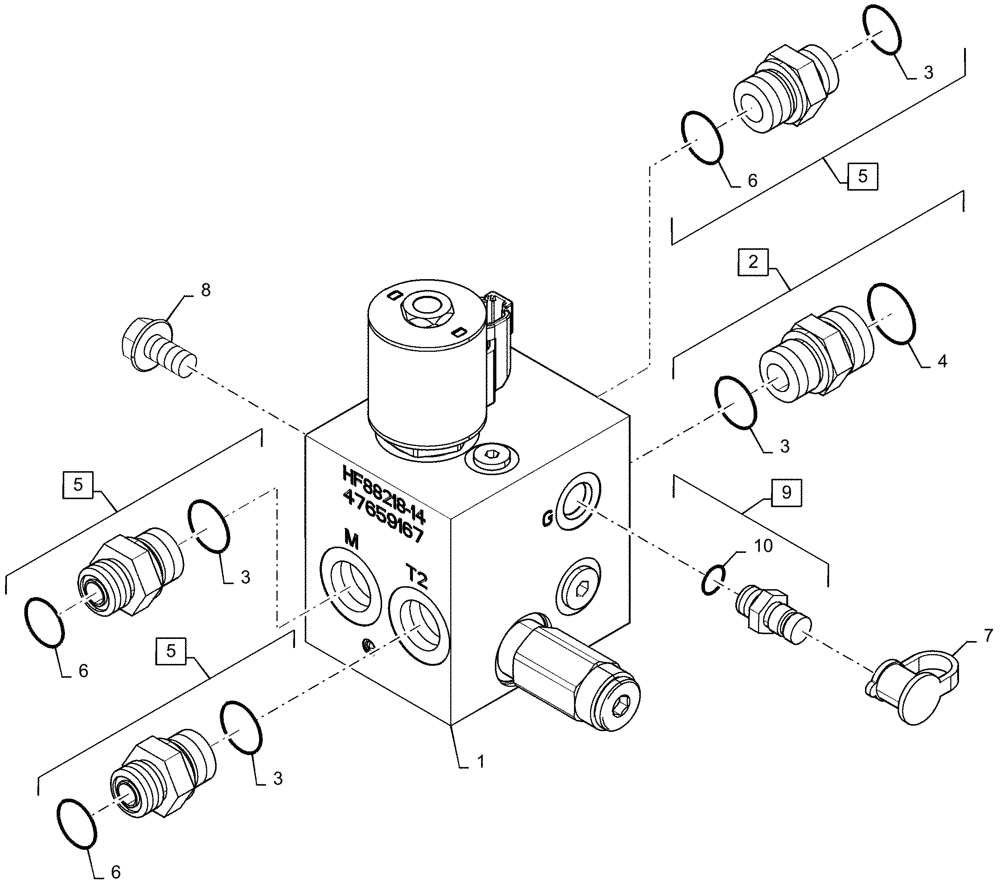

Схема запчастей Case IH AF4088 - (88.100.35[03]) - DIA KIT, HYDRAULIC REEL DRIVE (88) - ACCESSORIES
5
2
3
10
3
7
5
3
8
4
6
6
1
9
3
5
6

Артикул

Название

Примечание

Количество

1

47659167

Reel Drive

HYDRAULIC VALVE

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 3, 4

1шт.

3

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Incl 3, 6

3шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

86502604

DUST CAP

1шт.

8

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

3шт.

9

84320565

COUPLING,M14 x 1.5

Diagnostic Male, Incl 11

1шт.

9

178889A1

DIAGNOSTIC COUPLER

Male, Incl 11

1шт.

10

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 11
