Запчасти Case IH AF4088 (88.100.35[02]) - DIA KIT, HYDRAULIC REEL DRIVE (88) - ACCESSORIES

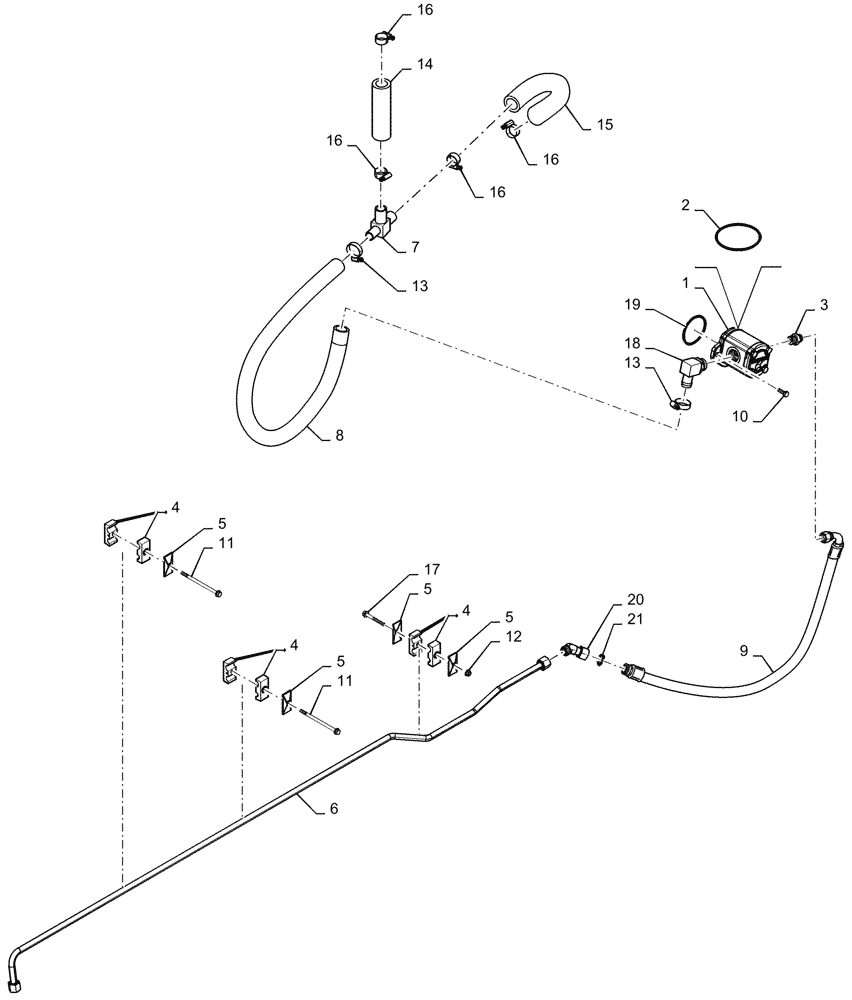

Схема запчастей Case IH AF4088 - (88.100.35[02]) - DIA KIT, HYDRAULIC REEL DRIVE (88) - ACCESSORIES
19
14
16
7
16
18
5
21
3
8
17
15
4
12
6
5
4
11
9
4
5
13
5
1
2
10
20
11
13
16
16

Артикул

Название

Примечание

Количество

1

47662528

Gear - 26.42 CC, Incl 2

HYDRAULIC PUMP

1шт.

2

47771469

SEAL KIT

1шт.

3

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

1шт.

4

87000144

CLAMP

2 Hole

3шт.

5

1347127C1

PLATE

Cover, Use for 2016

4шт.

5

87000230

PLATE

Cover, Use from 2017

4шт.

6

47733765

Reel Drive Supply

HYD TUBE

1шт.

7

47765886

Run Beaded

TEE

1шт.

8

47733736

Tee to Pump, Use for 2016

HYDRAULIC HOSE

1шт.

8

47896941

Tee to Pump, Use from 2017

HYDRAULIC HOSE

1шт.

9

47733752

Pump Pressure, Use for 2016

HYDRAULIC HOSE

1шт.

9

47897004

Pump Pressure, Use from 2017

HYDRAULIC HOSE

1шт.

10

87023124

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

11

84292045

BOLT,Hex, M8 x 140mm, Cl 8.8

Flange

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

13

86643166

HOSE CLAMP,#16, 20.6mm - 38.1mm, Type F Worm Gear, W/ Liner

2шт.

14

47765005

Tank to Tee, Use for 2016

HYDRAULIC HOSE

1шт.

14

47896969

Tank to Tee, Use from 2017

HYDRAULIC HOSE

1шт.

15

47765008

Tee to Filter, Use for 2016

HYDRAULIC HOSE

1шт.

15

47896984

Tee to Filter, Use from 2017

HYDRAULIC HOSE

1шт.

16

86634186

HOSE CLAMP,32mm - 54mm

Worm Gear

4шт.

17

87656138

BOLT,M8 x 78.1mm, Cl 10.9

1шт.

18

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

Fitting Hose 90 Elbow, Use for 2016

1шт.

18

47503592

FITTING

Fitting Hose, Use from 2017

1шт.

19

47712402

Use for 2016

O-RING

1шт.

19

87016951

O-RING,0.07" Thk x 3.489" ID, -43, Cl 5, 75 Duro

Use from 2017

1шт.

20

84214050

45 ELBOW,1" - 14 Male ORFS x 1" - 14 Female ORFS

Union

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

47857149

Adapter 9T 16/32 Spline, Use from 2017

SHAFT

1шт.

Выбрано товаров: 29
