Запчасти Case IH AF4088 (80.180.AY[02]) - ELBOW ASSY, UPPER UNLOADER (80) - CROP STORAGE/UNLOADING

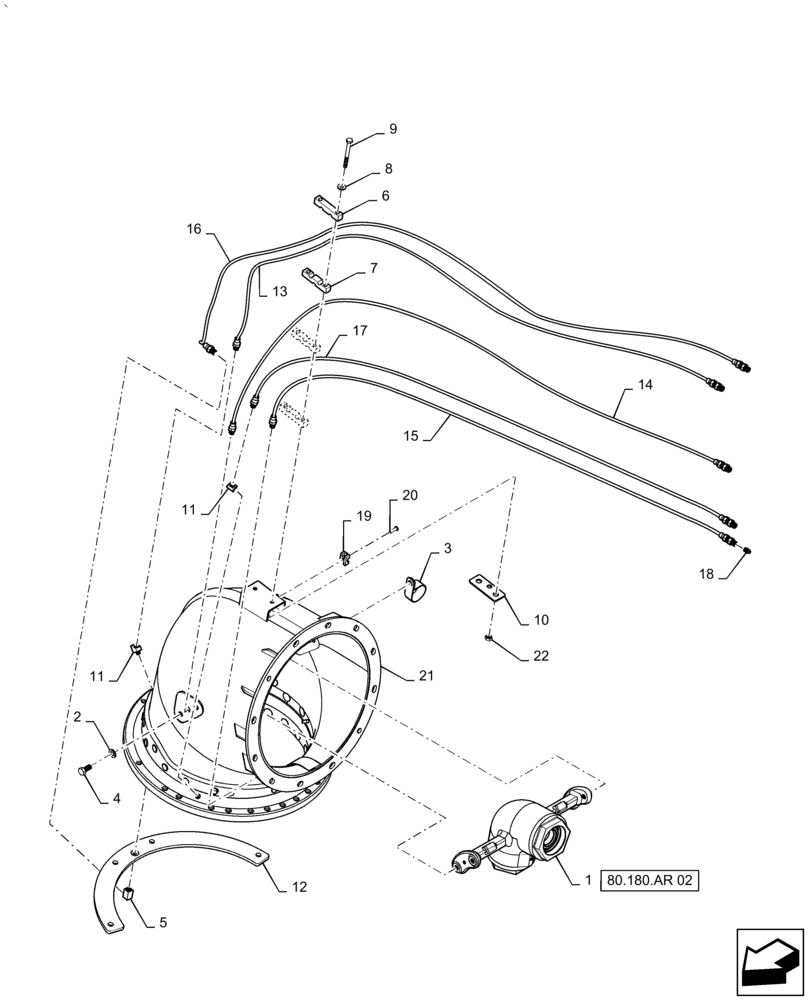

Схема запчастей Case IH AF4088 - (80.180.AY[02]) - ELBOW ASSY, UPPER UNLOADER (80) - CROP STORAGE/UNLOADING
5
14
6
2
7
21
11
15
19
13
10
8
22
3
17
9
20
4
12
16
18
1
11
80.180.ar 02

Артикул

Название

Примечание

Количество

1

1347351C2

GEARBOX,Bearing, Upper Unloading Assembly

Gearcase, Upper Unloader

1шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

3

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

Closed

1шт.

4

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

5

84260803

ADAPTER

Fitting, Lube

3шт.

6

429629A1

CLAMP

2шт.

7

419590A1

CLAMP

2шт.

8

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

Plated

2шт.

8

7058

WASHER,1/4", SAE

1шт.

9

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

10

87577375

BRACKET

Clamp Weld Assy, Lube Line

1шт.

11

87020437

ADAPTER,45 Degree, 1/4"-1/8 NPTF

Fitting, Lube

2шт.

12

87593300

BAR

Front Keeper, Unloader Elbow

1шт.

13

1339004C1

HOSE,3.17mm ID x 1778mm L

Tube

1шт.

14

1345098C1

HOSE

Tube

1шт.

15

428284A1

HOSE

Tube

1шт.

16

428294A1

HOSE

Tube

1шт.

17

430376A1

HOSE

Tube

1шт.

18

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

Fitting, Taper Light

5шт.

19

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

20

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

1шт.

21

87598258

ELBOW,Unloader, Upper

1шт.

22

76085536

NUT,1/8-27 NPSM

5шт.

Выбрано товаров: 23
