Запчасти Case IH AF4088 (80.180.AY[01]) - SUMP ASSY, UNLOADER (80) - CROP STORAGE/UNLOADING

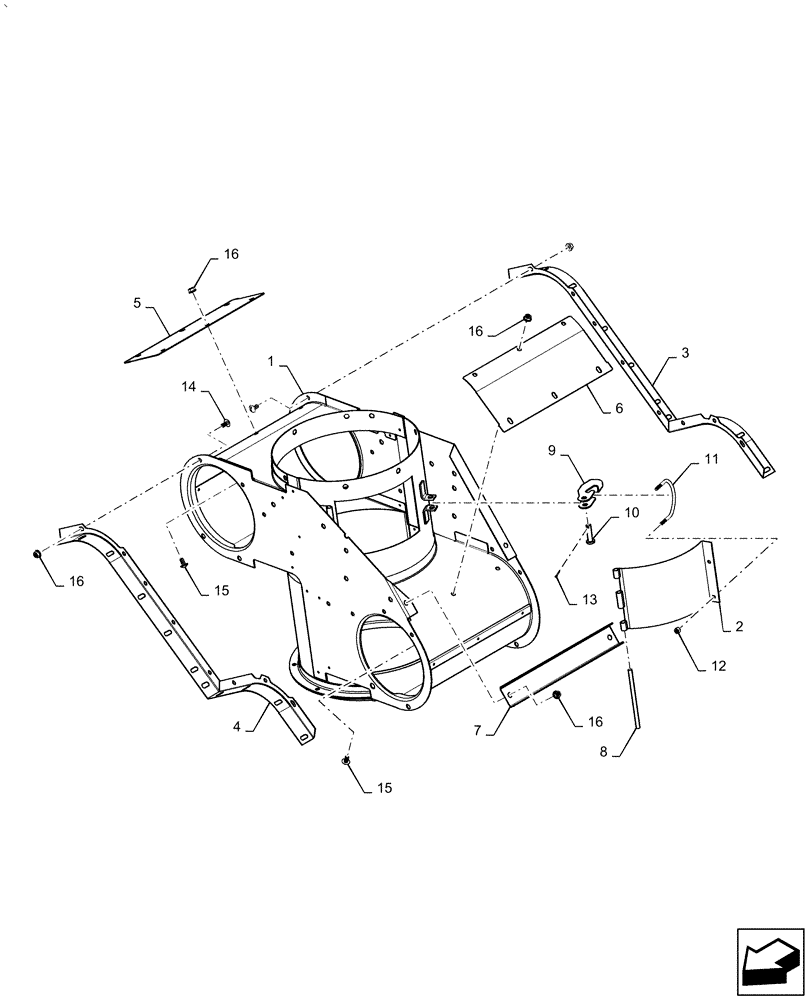

Схема запчастей Case IH AF4088 - (80.180.AY[01]) - SUMP ASSY, UNLOADER (80) - CROP STORAGE/UNLOADING
13
10
16
4
15
16
9
3
2
14
8
12
11
16
7
6
1
16
15
5

Артикул

Название

Примечание

Количество

1

47446642

Weld Assy, Unloader Lower

HOUSING

1шт.

2

47446640

Weld Assy, Unloader Lower Auger

SUPPORT

1шт.

3

47446638

Auger Housing, RH

SUPPORT

1шт.

4

47446636

Auger Housing, LH

SUPPORT

1шт.

5

47446634

Auger Bottom, Front

COVER

1шт.

6

47446629

Auger Bottom, Rear

COVER

1шт.

7

47446627

Vertical Auger

SUPPORT

1шт.

8

47462169

Frame Filler

PIN

1шт.

9

47426092

Bracket Plated, Handle

SUPPORT

1шт.

10

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

11

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

U Shape

1шт.

12

86625061

NUT,1/4"-20, GB

Prevailing Torque, Non-material

2шт.

13

87016659

COTTER PIN,M2.5 x 20mm OAL

Steel

1шт.

14

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

1шт.

15

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

24шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

25шт.

Выбрано товаров: 16
