(80.175.AO) - SUPPORT ASSY, CROSS AUGER DRIVE, IDLER

Запчасти Case IH AF4088 (80.175.AO) - SUPPORT ASSY, CROSS AUGER DRIVE, IDLER (80) - CROP STORAGE/UNLOADING

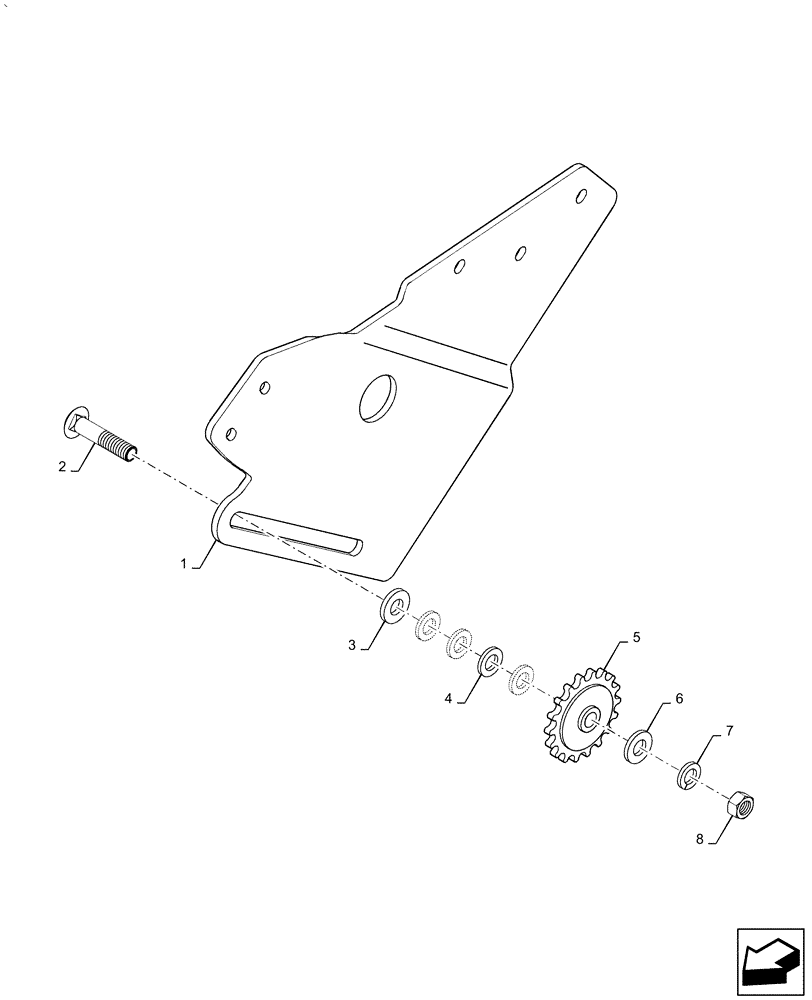

Схема запчастей Case IH AF4088 - (80.175.AO) - SUPPORT ASSY, CROSS AUGER DRIVE, IDLER (80) - CROP STORAGE/UNLOADING
6
7
5
1
3
2
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47461514

Cross Auger Drive Idler

SUPPORT

1шт.

2

87495309

CARRIAGE BOLT,M12 x 1.75 x 66.8mm, Cl 10.9

1шт.

3

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

5

607779R91

DRIVE SPROCKET

Idler and Tightener

1шт.

6

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

Regular

1шт.

8

337475

NUT,M12, Cl 10

1шт.
