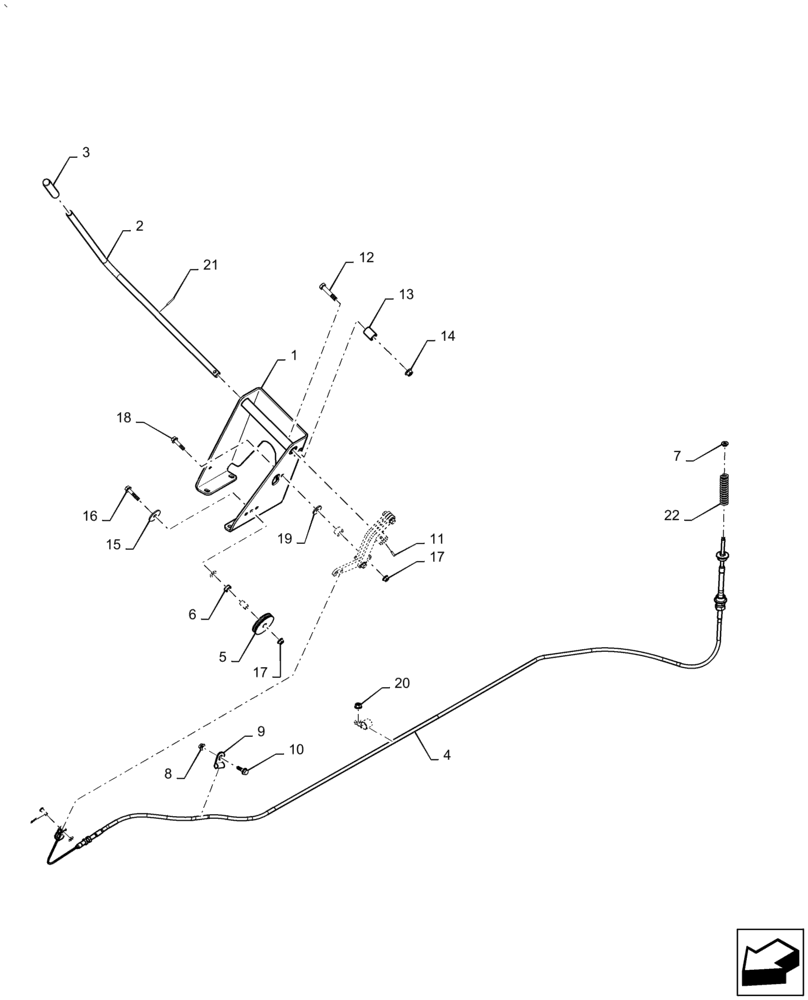

Запчасти Case IH AF4088 (80.175.AE[01]) - CONTROL LEVER HANDLE GRIP, HEATER ONLY, DISCHARGE (80) - CROP STORAGE/UNLOADING

1

47665522

Weld Assy, Grain Tank Unloader, Use for 2016

SUPPORT

1шт.

1

47996983

Weld Assy, Grain Tank Unloader, Use from 2017

SUPPORT

1шт.

2

47665506

Control, Unload

LEVER

1шт.

3

47674697

Grip, Unloading Auger

GRIP

1шт.

4

47665515

Unloader

CABLE

1шт.

5

47567495

Unload Engage

PULLEY

1шт.

6

47567917

BUSHING

1шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

9

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

Closed

5шт.

10

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

11

47479764

CLEVIS PIN,1/4" OD x 1.219" L

2шт.

12

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

13

384257A1

SPACER,13.87mm ID x 21.34mm OD x 28.6mm L

1шт.

14

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

15

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

1шт.

16

87698834

BOLT,M8 x 48.1mm, Cl 10.9

Flange

1шт.

17

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

18

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

1шт.

19

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

1шт.

20

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

21

84818466

ROLL PIN,3mm OD x 26mm L, Slotted

1шт.

22

47639882

SPRING

1шт.
