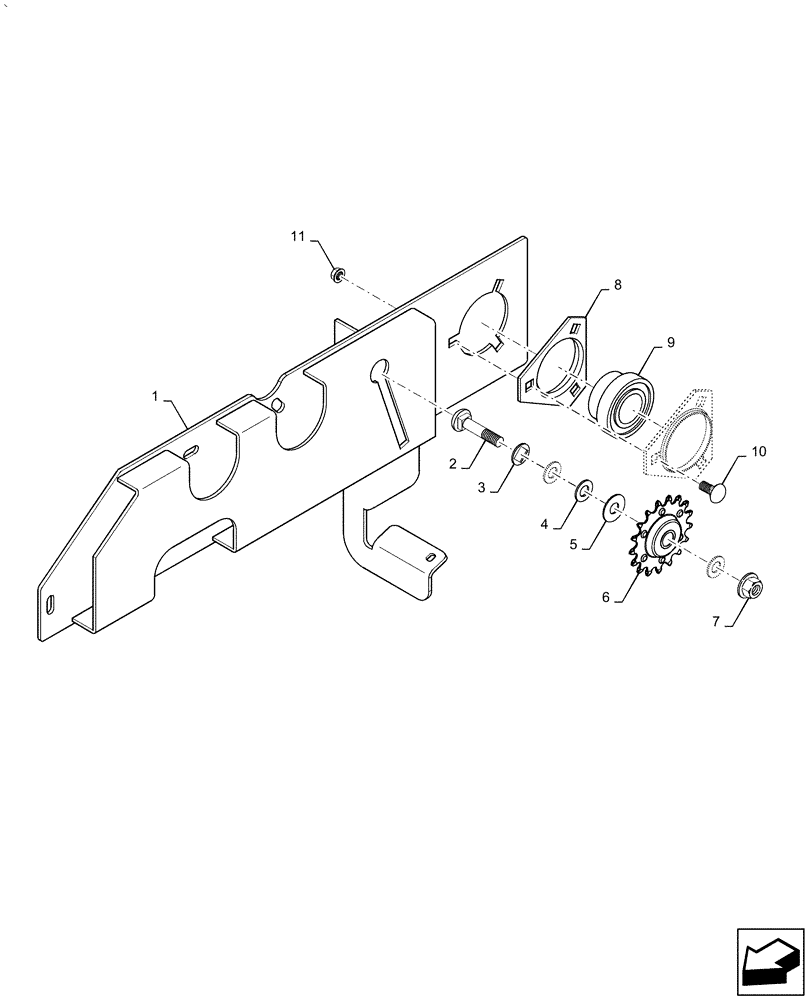

Запчасти Case IH AF4088 (80.150.AJ) - TENSIONER ASSY, DRIVE UNLOADER (80) - CROP STORAGE/UNLOADING

1

47552699

Weld Assy, Jackshaft

SUPPORT

1шт.

2

87495309

CARRIAGE BOLT,M12 x 1.75 x 66.8mm, Cl 10.9

1шт.

3

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

1шт.

4

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

3шт.

5

87613189

WASHER,0.53" ID x 1.25" OD x 0.06" Thk

1шт.

6

87302107

SPROCKET

Idler

1шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

8

86620026

FLANGED BEARING

Spherical, Housing

2шт.

9

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

10

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

3шт.

11

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

Flange

3шт.
