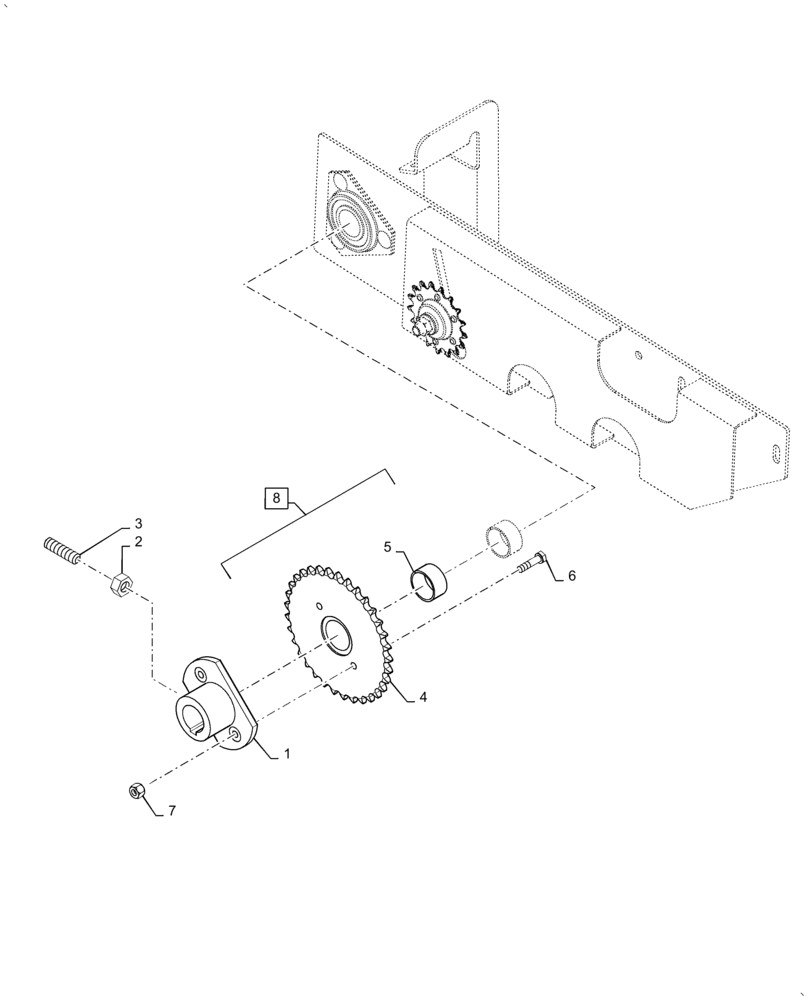

Запчасти Case IH AF4088 (80.150.AA[07]) - SPROCKET ASSY, GRAIN TANK (80) - CROP STORAGE/UNLOADING

1

47552728

Weld Assy, Unloader Drive

HUB

1шт.

2

9706690

NUT,M8 x 1.25, Cl 8

2шт.

3

300479

SET SCREW,M8 x 25mm

2шт.

4

47553982

Assy, Unloader Drive

SPROCKET

1шт.

4

47553981

Assy, Unloader Drive

SPROCKET

1шт.

5

47552724

Installation, Jackshaft Unloader Drive

BEARING SET

2шт.

6

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

8шт.

7

86050277

NUT,5/16"-18, GB

Prev Torque

8шт.

8

47552726

Weld Assy, Unloader Drive, Incl 4, 5

SPROCKET

1шт.
