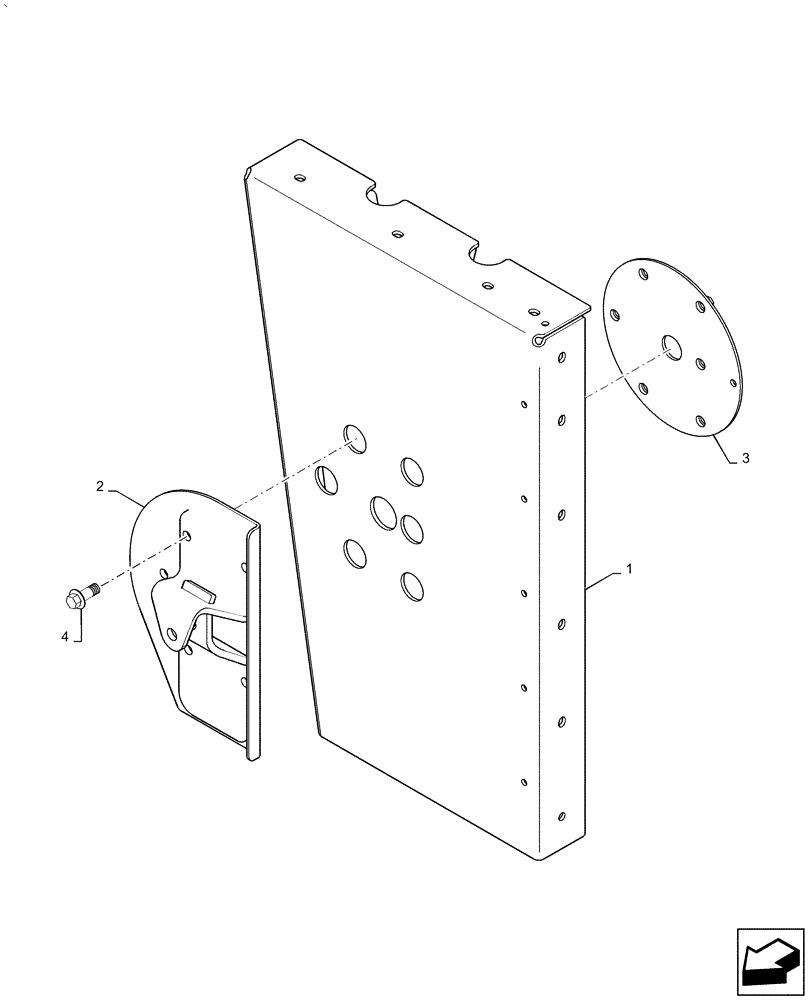

Запчасти Case IH AF4088 (80.150.AA[06]) - GRAIN TANK ASSY (80) - CROP STORAGE/UNLOADING

1

47461505

Weld Assy, Tie Rod

SUPPORT

1шт.

2

47461500

Bracket Weld Assy, Tie Rod

SUPPORT

1шт.

3

47461495

Weld Assy, Tensioner Bolting Ring

PLATE

1шт.

4

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

Flange

6шт.
