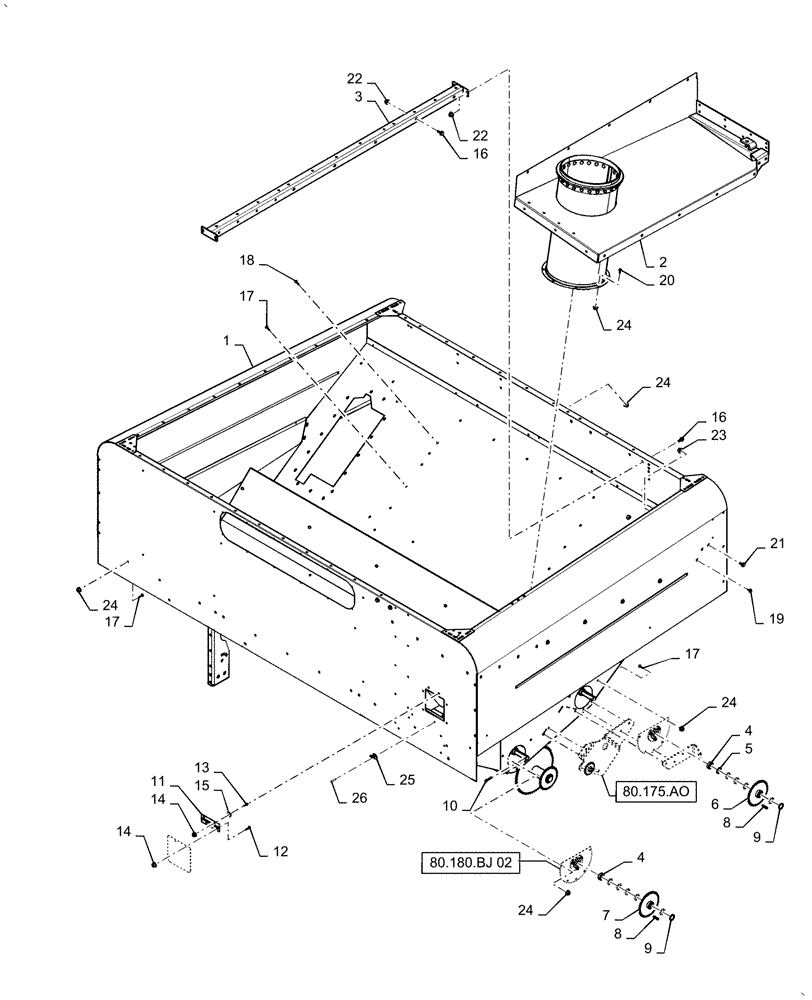

Запчасти Case IH AF4088 (80.150.AA[04]) - GRAIN TANK ASSY (80) - CROP STORAGE/UNLOADING

1

47653619

Weld Assy

GRAIN TANK

1шт.

2

47458739

Weld Assy, Unloader Cylinder

SUPPORT

1шт.

3

47458724

Weld Assy, Grain Tank Tie

ANGLE

1шт.

4

87431217

COLLAR,25.43mm ID x 38.1mm OD x 13.5mm W

Lock, Plated

2шт.

5

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

10шт.

6

47586460

Weld Assy, Rear Drive

SPROCKET

1шт.

7

47586456

Weld Assy, Front Drive

SPROCKET

1шт.

8

Q53

KEY,1/4" Sq x 1", Par

2шт.

9

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

2шт.

10

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

11

397586A1

HINGE

1шт.

12

847-3616

SERRATED SCREW,Sl Truss, M6 x 16mm, Cl 10.9

2шт.

13

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

2шт.

14

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

10шт.

17

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

21шт.

18

847-3825

SERRATED SCREW,M8 x 25mm, Cl 10.9

3шт.

19

87673844

SELF-TAP SCREW,M8 x 1.25 x 20mm

5шт.

20

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

8шт.

21

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

22

86050279

FLANGE NUT,M10 x 1.5, Cl 10

10шт.

23

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Plated

40шт.

25

167800C1

CLIP

Fastener, Door Retain

1шт.

26

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.
