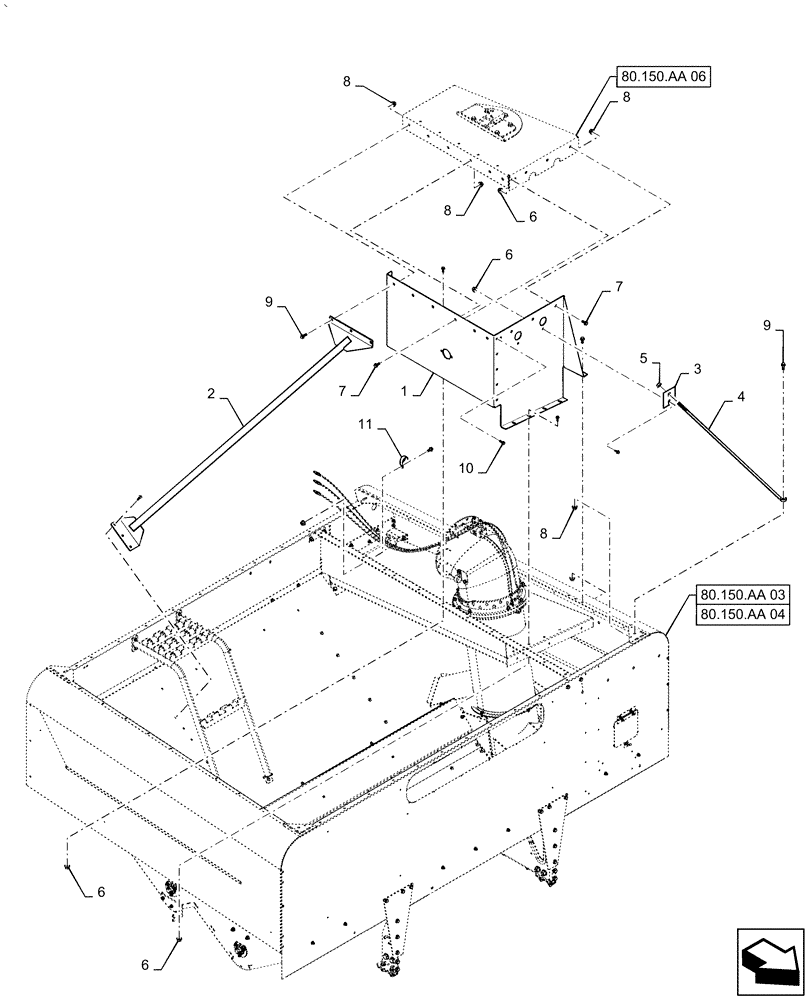

Запчасти Case IH AF4088 (80.150.AA[02]) - GRAIN TANK ASSY (80) - CROP STORAGE/UNLOADING

1

47458799

Extension, LH, Front

SHEET

1шт.

2

47458797

Weld Assy, Grain Tank Unloader

SUPPORT

1шт.

3

47458790

Support Rod

SEAL

1шт.

4

47458791

Front

ROD

1шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

7

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

10шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

15шт.

9

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

5шт.

10

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

11

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

Closed

1шт.
