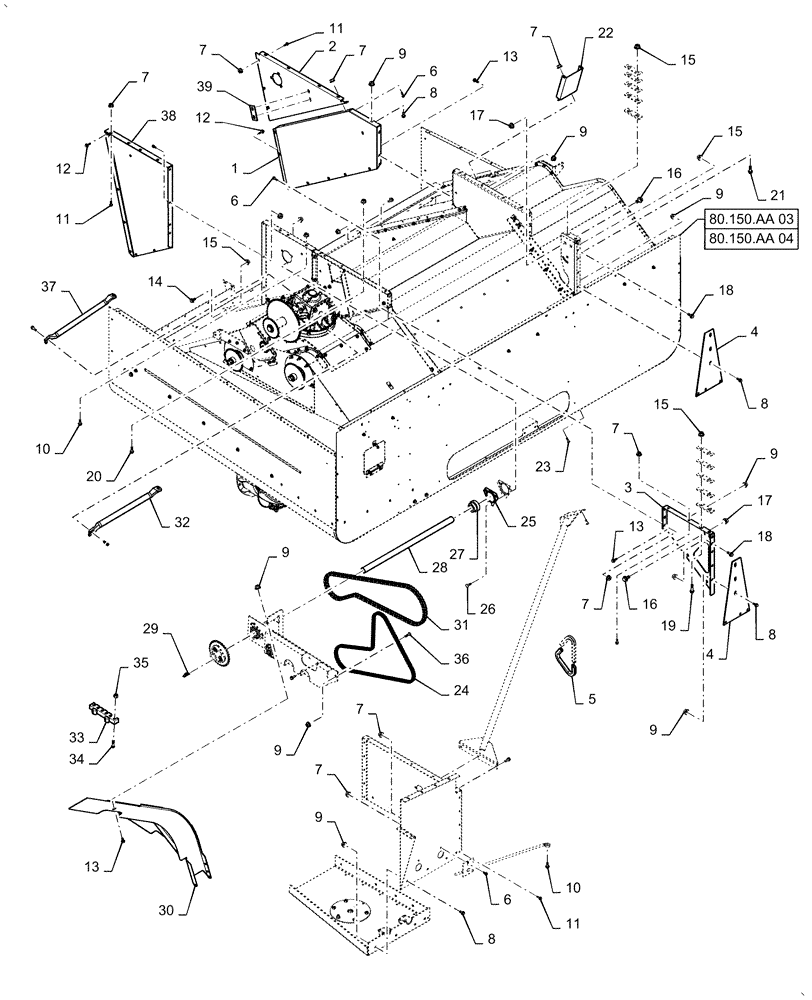

Запчасти Case IH AF4088 (80.150.AA[01]) - GRAIN TANK ASSY (80) - CROP STORAGE/UNLOADING

1

47678593

Tank Rear RH

SUPPORT

1шт.

2

47678589

Weld Assy, Elevator, Inner

SUPPORT

1шт.

3

47841475

LH Front Grain Tank

SUPPORT

1шт.

4

47461492

Front Grain Tank Support

PLATE

2шт.

5

1319395C1

CONDUIT

Seal

2шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

22шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

35шт.

8

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

31шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

59шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

10шт.

11

87698833

BOLT,M8 x 33.1mm, Cl 10.9

11шт.

12

87673844

SELF-TAP SCREW,M8 x 1.25 x 20mm

15шт.

13

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

12шт.

14

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

15

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

16

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

4шт.

17

86512498

FLANGE NUT,M16 x 2, Cl 10

4шт.

18

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

Flange

4шт.

19

87670764

BOLT,M12 x 61.8mm, Cl 10.9

2шт.

20

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

21

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

22

47461546

Tlgs Elevator Upper

SUPPORT

1шт.

23

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

2шт.

24

47552729

Lower Grain Tank Cross Auger Drive

CHAIN

1шт.

25

86620026

FLANGED BEARING

2шт.

26

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

3шт.

27

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

28

47552689

Unloader Drive

JACKSHAFT

1шт.

29

380428

WOODRUFF KEY,10mm x 13mm x 31.43mm

1шт.

30

47552694

Weld Assy, Unloader Drive

SHIELD

1шт.

31

47607660

Vertical Auger Drive

CHAIN

1шт.

32

47461544

Drive Housing Front

SUPPORT

1шт.

33

3102155R1

HOLDER

1шт.

34

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

8шт.

35

86050277

NUT,5/16"-18, GB

Prev Torque

8шт.

36

87573369

SERRATED SCREW,Sl Truss, M10 x 20mm, Cl 10.9

1шт.

37

47461517

Unloader Tube

SUPPORT

1шт.

38

47678595

Grain Tank Lower LH RR

SUPPORT

1шт.

39

47839710

Support

PLATE

1шт.
