Запчасти Case IH AF4088 (80.101.CA[02]) - BOOT, CLEAN GRAIN ELEVATOR, EXTENDED WEAR (80) - CROP STORAGE/UNLOADING

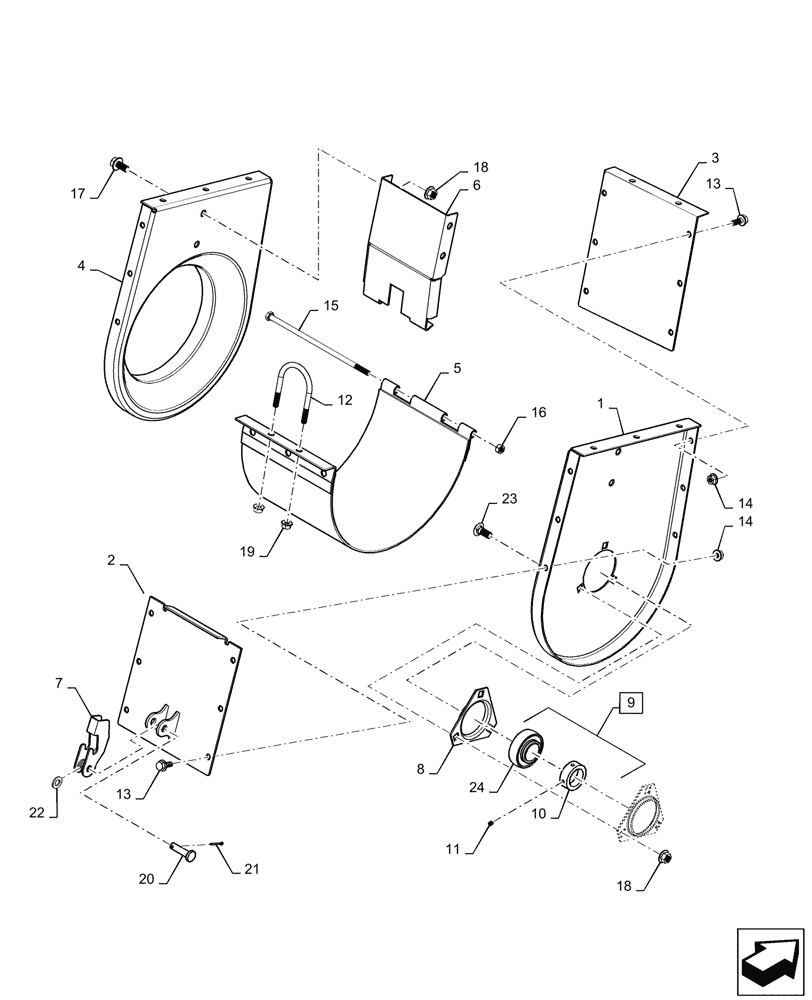

Схема запчастей Case IH AF4088 - (80.101.CA[02]) - BOOT, CLEAN GRAIN ELEVATOR, EXTENDED WEAR (80) - CROP STORAGE/UNLOADING
7
8
4
14
15
18
13
11
18
19
14
2
10
6
9
12
17
16
20
5
13
23
22
21
1
3
24

Артикул

Название

Примечание

Количество

1

47538617

Out Boot Grain Elevator Extension Wear

PANEL

1шт.

2

47538697

Weld Assy, Boot Rear Extension Wear, Use for 2015

PANEL

1шт.

2

48002218

Weld Assy, Boot Front Extension Wear, Use from 2016

PANEL

1шт.

3

47687200

Panel Weld Assy, Boot Front Extension Wear, Use for 2015

HOOD

1шт.

3

48002231

Weld Assy, Boot Rear Extension Wear, Use from 2016

PANEL

1шт.

4

47538648

Inner Boot Grain Elevator Extension Wear

PANEL

1шт.

5

47538676

Weld Assy, Elevator Boot Extension Wear

DOOR

1шт.

6

47591142

Boot Grain Elevator Extension Wear

DEFLECTOR

1шт.

7

86581559

HANDLE

Bracket

1шт.

8

84414986

FLANGE

2шт.

9

325106

BALL BEARING,30mm ID x 62mm OD x 18mm W

Grain Elevator, Incl 10, 11 and 24

1шт.

10

NSS

NOT SOLD SEPARAT

Ring Span, Incl in 9

1шт.

11

86516064

SET SCREW,M6 x 6mm, Cl 12.9

1шт.

12

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

Bracket

1шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

12шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Plated

12шт.

15

87522766

BOLT,Hex, M8 x 220mm, Cl 8.8

1шт.

16

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

Prevailing Torque, All Material

1шт.

17

87573369

SERRATED SCREW,Sl Truss, M10 x 20mm, Cl 10.9

Flange

4шт.

18

86050279

FLANGE NUT,M10 x 1.5, Cl 10

7шт.

19

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque

2шт.

20

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

21

87016659

COTTER PIN,M2.5 x 20mm OAL

1шт.

22

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

23

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

24

NSS

NOT SOLD SEPARAT

Ball Bearing, Incl in 9

1шт.
