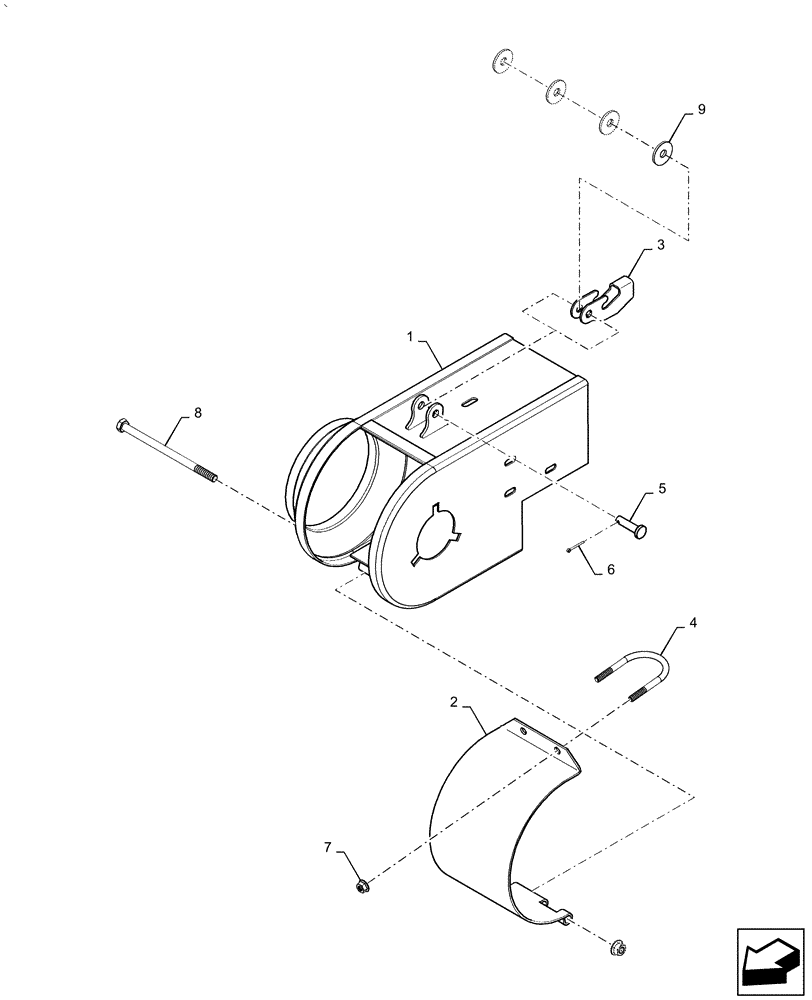

Запчасти Case IH AF4088 (80.101.AR[05]) - BOOT, TAILINGS ELEVATOR (80) - CROP STORAGE/UNLOADING

1

47669632

Boot, Weld Assy, Tailings Elevator

HOOD

1шт.

2

47669627

Door, Elevator Boot

HOOD

1шт.

3

86581559

HANDLE

Bracket

1шт.

4

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

Bracket

1шт.

5

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

6

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

7

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque

3шт.

8

47646874

BOLT, M10X170 10.9 ZND

BOLT,Hex, M10 x 170mm, Cl 10.9

1шт.

9

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.
