Запчасти Case IH AF4088 (74.140.AM[01]) - TAILINGS ELEVATOR ASSY (74) - CLEANING

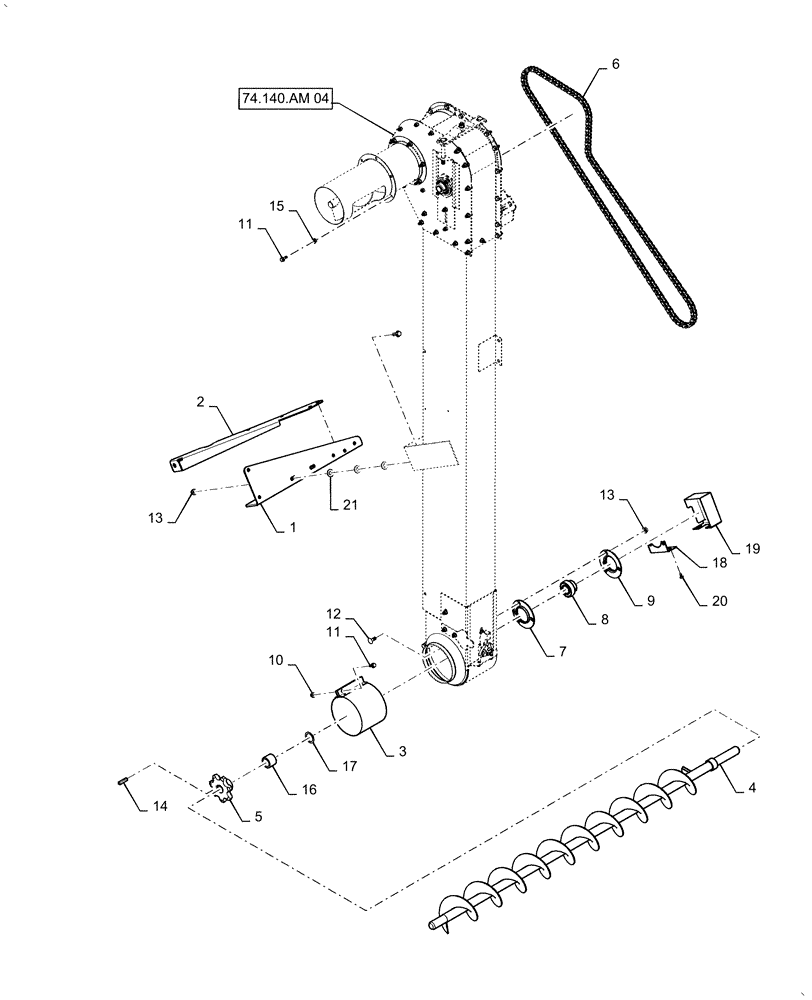

Схема запчастей Case IH AF4088 - (74.140.AM[01]) - TAILINGS ELEVATOR ASSY (74) - CLEANING
15
18
1
11
19
4
7
16
12
10
17
13
13
20
21
11
9
14
3
2
5
74.140.am 04
6
8

Артикул

Название

Примечание

Количество

1

47457050

Bracket, Elevator Upper

SUPPORT

1шт.

2

47457052

Bracket, Elevator Lower

SUPPORT

1шт.

3

47494541

Weld Assy, Tailings Extension

TUBE

1шт.

4

47426349

Weld Assy, Tailings Trough

AUGER

1шт.

5

47743154

Tailings Elevator

SPROCKET

1шт.

6

84326475

CHAIN

Tailings Elevator Drive

1шт.

7

47417549

FLANGE

Bearing

1шт.

8

47438241

Assy

BALL BEARING

1шт.

9

47417550

FLANGE

Bearing, With Lube Fitting

1шт.

10

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque

2шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

7шт.

12

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

14

47433044

Key, Square

KEY,8mm x 7mm x 40mm

1шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

16

47427935

Sprocket, Tailings Auger

SPACER

1шт.

17

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1шт.

18

47427032

Bracket, Shaft Speed Sensor

SUPPORT

1шт.

19

47431097

Sensor, Tailings Elevator, RH

COVER

1шт.

20

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

Выбрано товаров: 21
