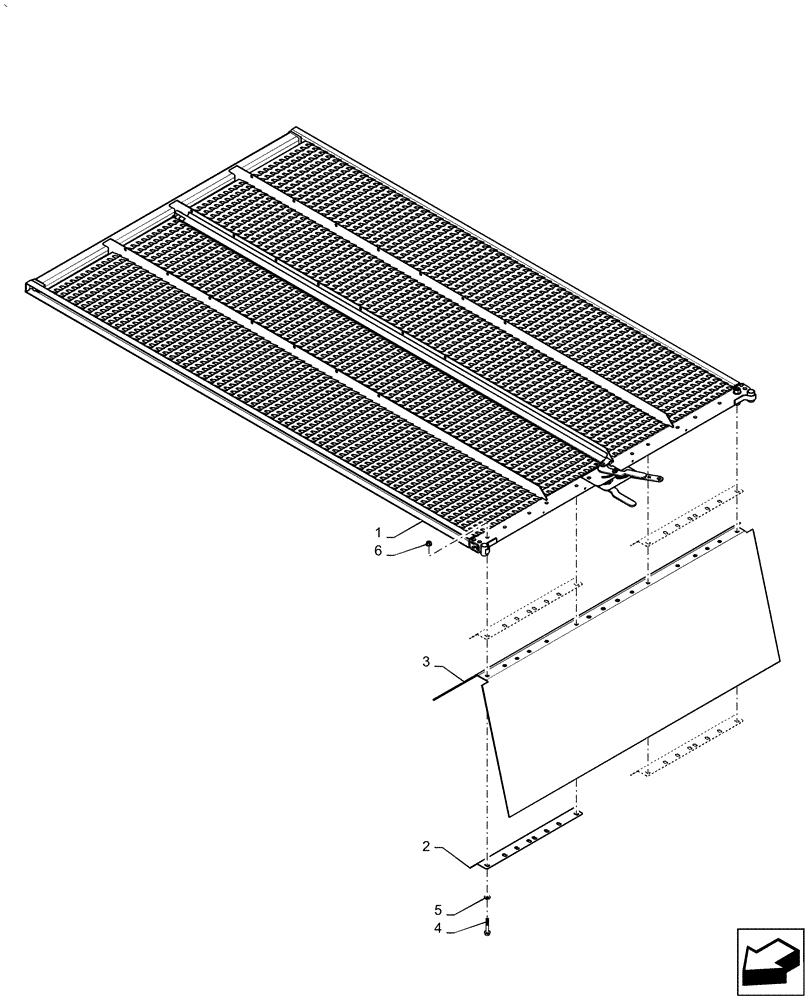

Запчасти Case IH AF4088 (74.114.AZ[02]) - UPPER SIEVE, 1 1/8" CLOSZ (74) - CLEANING

1

84321193

SIEVE

Upper Closz

1шт.

2

47539062

Upper Sieve Seal

ANGLE

4шт.

3

84339391

SEAL,674mm W x 1184mm L

Upper Sieve

1шт.

4

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

11шт.

5

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

6

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Prevailing Torque

11шт.
