Запчасти Case IH AF4088 (73.335.AI[04]) - STRAW SPREADER (73) - RESIDUE HANDLING

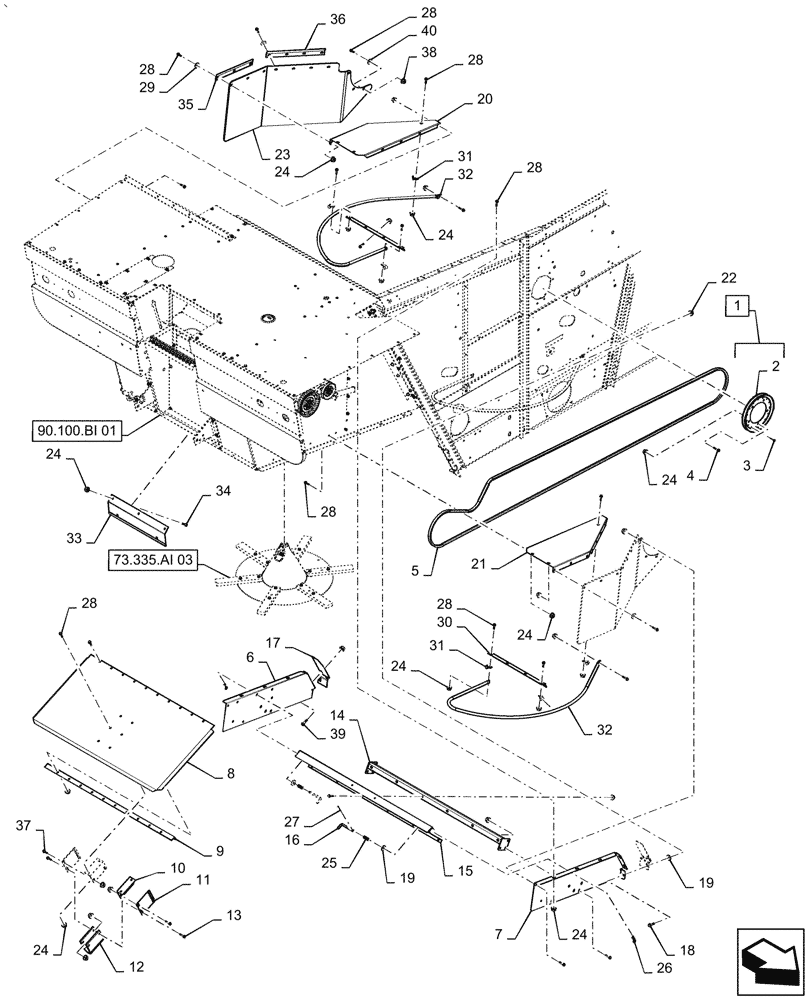

Схема запчастей Case IH AF4088 - (73.335.AI[04]) - STRAW SPREADER (73) - RESIDUE HANDLING
90.100.bi 01
8
22
24
30
32
38
34
24
24
6
28
24
3
2
32
40
7
35
11
33
29
28
20
36
4
24
24
21
14
24
28
15
12
16
25
13
24
19
27
37
1
19
23
28
26
9
28
31
10
5
39
18
28
31
28
17
73.335.ai 03

Артикул

Название

Примечание

Количество

1

87735652

PULLEY

Straw Spreader Drive, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Straw Spreader Drive, Incl in 1

2шт.

3

47-37

RIVET,FH, 3/16" x 7/16"

15шт.

4

87698833

BOLT,M8 x 33.1mm, Cl 10.9

5шт.

5

84172256

V-BELT,5654.00 mm L

Straw Spreader Drive

1шт.

6

47618166

Plate Hood Extension, LH

COVER

1шт.

7

47629511

Plate Hood Extension, RH

COVER

1шт.

8

47628731

SHIELD

1шт.

9

47512926

Assy

SUPPORT

1шт.

10

47512927

ANGLE

2шт.

11

47628723

SUPPORT

2шт.

12

47491064

STRIP

1шт.

13

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

14

47503056

Assy, Tailings Door

SUPPORT

1шт.

15

47494560

Weld Assy, Cleaning Shoe

TAILGATE

1шт.

16

47621833

Tailgate Lock

PIN

2шт.

17

47491016

Hood Extension

SEAL

2шт.

18

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

Use for 2015

4шт.

18

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

Use from 2016

2шт.

19

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

20

47621683

LH, Straw Spreader

SHIELD

1шт.

21

47621689

RH, Straw Spreader

SHIELD

1шт.

22

86050279

FLANGE NUT,M10 x 1.5, Cl 10

Use for 2015

4шт.

22

86050279

FLANGE NUT,M10 x 1.5, Cl 10

Use from 2016

6шт.

23

47827838

Spreader

CURTAIN

2шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use for 2015

92шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use from 2016

72шт.

25

47432867

Compression

SPRING

2шт.

26

586591R1

COTTER PIN

3шт.

26

1866

HAIR PIN COTTER

1шт.

27

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

Use for 2015

2шт.

27

87016659

COTTER PIN,M2.5 x 20mm OAL

Use from 2016

2шт.

28

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange, Use for 2015

80шт.

28

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange, Use from 2016

76шт.

29

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

Use for 2016

20шт.

30

47621738

Straw Spreader Shield

SUPPORT

2шт.

31

515-28175

CLAMP,17.5mm ID, 10.3mm Bolt Hole, P Type

6шт.

32

47621805

Pipe, Straw Spreader Shield

PIPE

2шт.

33

47478264

Straw Spreader

DEFLECTOR

1шт.

34

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.

35

47786457

Straw Spreader Shield

STRIP

2шт.

36

47786459

Straw Spreader Shield

STRIP

2шт.

37

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

Use from 2016

4шт.

38

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Use from 2016

20шт.

39

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

Use from 2016

4шт.

40

86632582

WASHER,0.34" ID x 1" OD x 0.06" Thk

Use from 2016

6шт.

Выбрано товаров: 46
