Запчасти Case IH AF4088 (72.420.AM[01]) - SUPPORT ASSY, ROTOR CAGE REAR, SHIELD, FOR CHOPPER (72) - SEPARATION

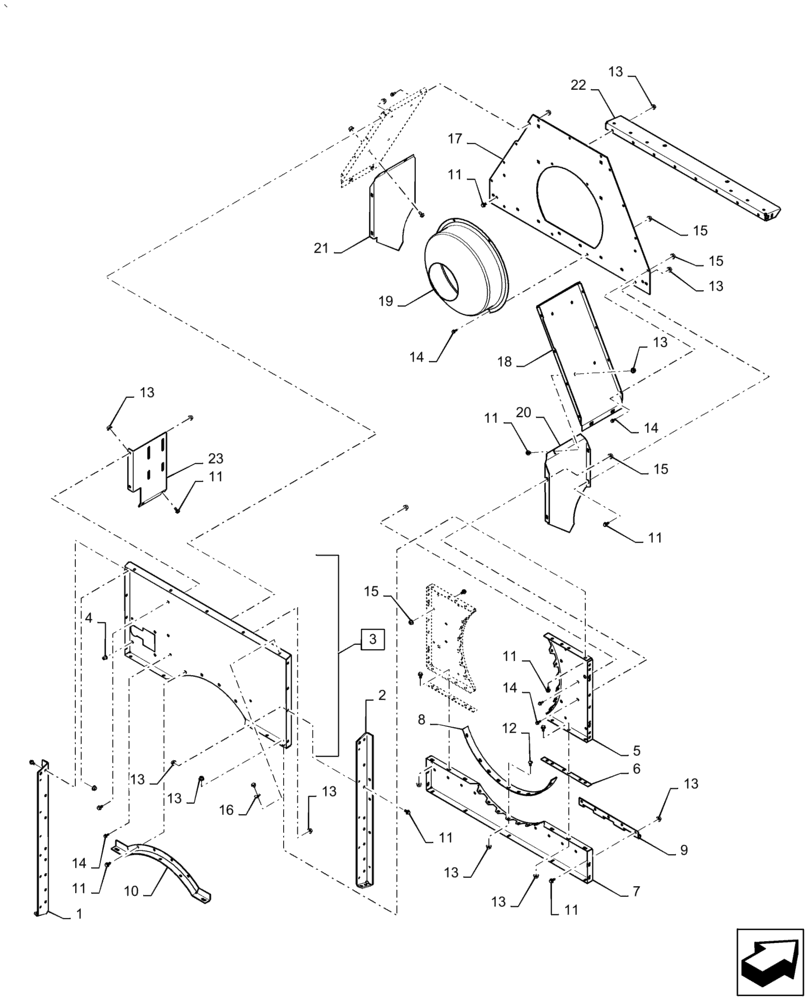

Схема запчастей Case IH AF4088 - (72.420.AM[01]) - SUPPORT ASSY, ROTOR CAGE REAR, SHIELD, FOR CHOPPER (72) - SEPARATION
15
7
4
13
14
14
15
8
13
13
14
12
13
22
11
11
23
5
17
16
11
1
9
15
11
11
21
11
15
11
2
3
13
19
13
13
13
20
18
11
10
13
6
13
14

Артикул

Название

Примечание

Количество

1

47497314

Grain Tank, Rear, RH

SUPPORT

1шт.

2

47497317

Grain Tank, Rear, LH

SUPPORT

1шт.

3

47497319

Assy, Rotor Rear Upper, Incl 4

PANEL

1шт.

4

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

5

1994850C3

SUPPORT

Rotor Cage Rear

2шт.

6

47497327

Bulk Head Rear

SHEET

2шт.

7

84292766

BRACKET

Support, Rotor Cage Lower

1шт.

8

47497336

Cage Cover

STRIP

1шт.

9

47497341

Beater Bottom

HINGE

2шт.

10

1308695C1

SUPPORT

Rear Upper Cage

1шт.

11

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

67шт.

12

87487056

SERRATED SCREW,M10 x 1.5 x 20mm, Cl 10.9

9шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

76шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

24шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

24шт.

16

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

5шт.

17

47497353

Rotor Discharge Rear

SHEET

1шт.

18

47497367

Rotor Discharge Side

COVER

2шт.

19

182545C2

HOUSING

Cover, Rotor Gear Case

1шт.

20

47498381

Rotor Discharge LH

DEFLECTOR

1шт.

21

47498383

Rotor Discharge RH

DEFLECTOR

1шт.

22

47498389

Engine Deck, Front

SUPPORT

1шт.

23

47498391

Rotor Adjustment, Motor, LH

SUPPORT

1шт.

Выбрано товаров: 23
