Запчасти Case IH AF4088 (66.331.AL[01]) - ROTOR PART INSTALLATION, CORN (66) - THRESHING

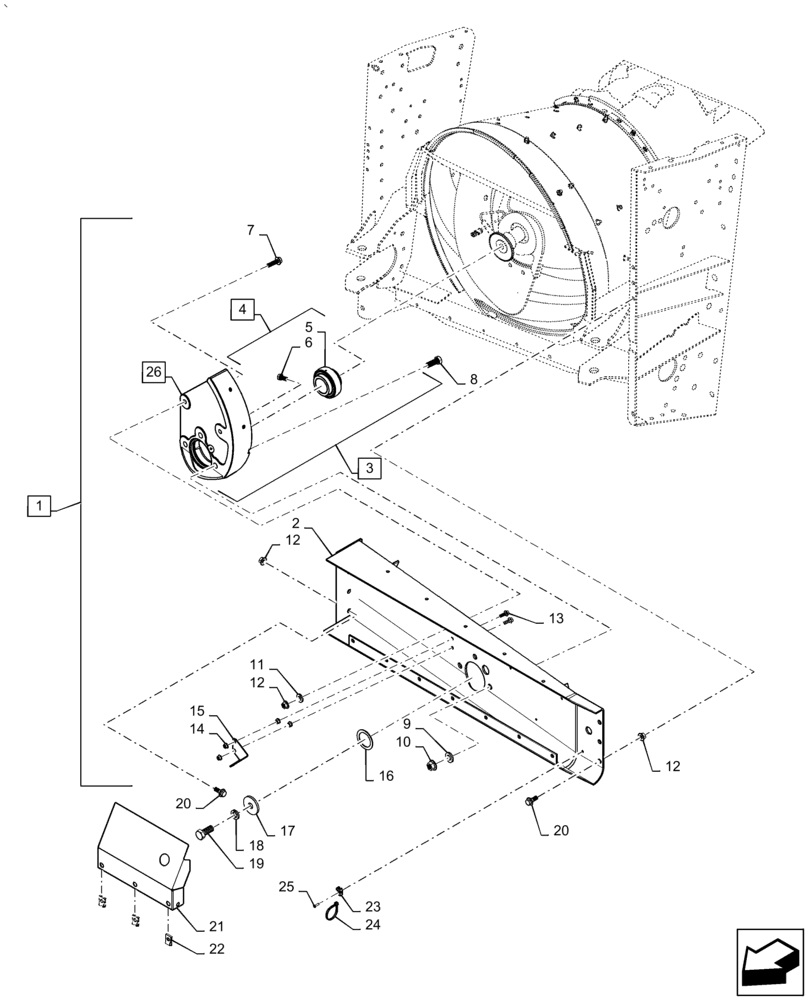

Схема запчастей Case IH AF4088 - (66.331.AL[01]) - ROTOR PART INSTALLATION, CORN (66) - THRESHING
17
4
20
23
19
15
6
16
5
10
9
22
12
13
18
2
8
14
12
11
7
1
26
25
24
3
21
20
12

Артикул

Название

Примечание

Количество

1

47526155

Assy, Rotor Bearing Channel, Incl 2 - 16

SUPPORT

1шт.

2

47565641

Assy, Front Bearing

SUPPORT

1шт.

3

87680175

BEARING ASSY

Rotor Front Housing, Painted, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Thrust Bearing, Housing Assy, Rotor Front, Incl 3

1шт.

5

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

Rotor Front

1шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

7

86705431

BOLT,Hex, M12 x 40mm, Cl 10.9

Flange

2шт.

8

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

9

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

3шт.

10

86512498

FLANGE NUT,M16 x 2, Cl 10

3шт.

11

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

9шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

15

47566087

Bracket, Rotor Speed Sensor

SUPPORT

1шт.

16

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

1шт.

17

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

1шт.

18

492-11075

LOCK WASHER,3/4"

1шт.

19

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

1шт.

20

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

Flange

7шт.

21

47525778

Rotor Revolutions Per Minute Sensor

SHIELD

1шт.

22

833-40310

NUT,M10, U

3шт.

23

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

3шт.

24

86566989

CABLE TIE,208mm L

Nylon

3шт.

25

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

26

87639801

CASING

1шт.

Выбрано товаров: 26
