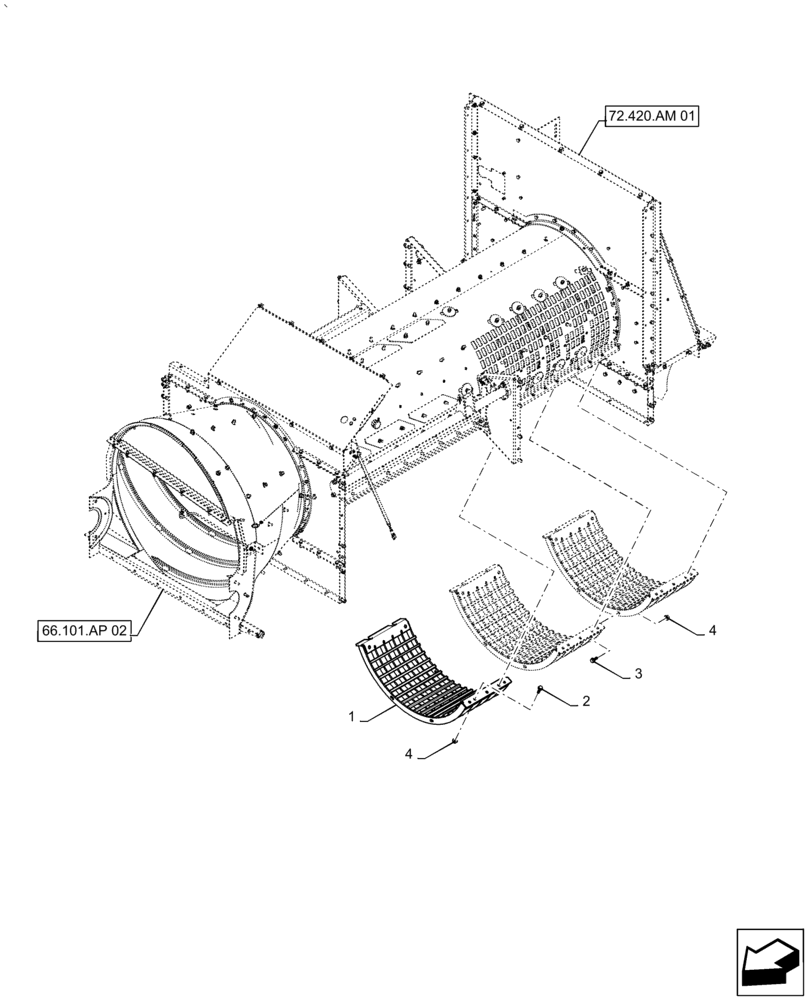

Запчасти Case IH AF4088 (66.331.AA[02]) - GRATE ASSY, CONCAVE STANDARD BAR (66) - THRESHING

1

1302562C1

CONCAVE

Grate Assy, Keystock, Use for 2015

3шт.

1

47861791

Weld Assy, Keystock, Use from 2016

GRATE

3шт.

2

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

10шт.

3

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

4

86050279

FLANGE NUT,M10 x 1.5, Cl 10

12шт.
