(66.331.AA[01]) - GRATE ASSY, CONCAVE, SLOTTED

Запчасти Case IH AF4088 (66.331.AA[01]) - GRATE ASSY, CONCAVE, SLOTTED (66) - THRESHING

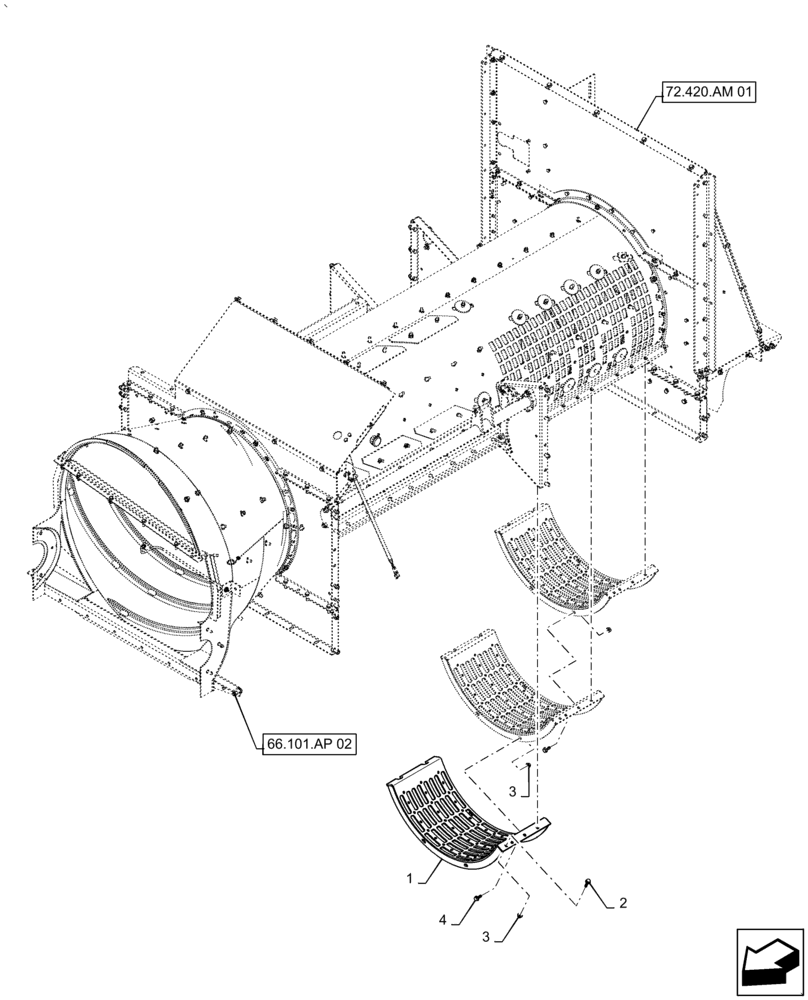

Схема запчастей Case IH AF4088 - (66.331.AA[01]) - GRATE ASSY, CONCAVE, SLOTTED (66) - THRESHING
3
2
4
1
72.420.am 01
66.101.ap 02
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84302563

GRATE

Assy Slotted with Stiffeners, Use for 2015

3шт.

1

191538C3

GRATE ASSY.

Use for 2015

3шт.

1

47892942

Assy Slotted with Stiffeners, Use from 2016

GRATE

3шт.

2

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

10шт.

3

86050279

FLANGE NUT,M10 x 1.5, Cl 10

12шт.

4

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.
