Запчасти Case IH AF4088 (66.260.AV ) - PULLEY ASSY, TORQUE SENSING UNIT (66) - THRESHING

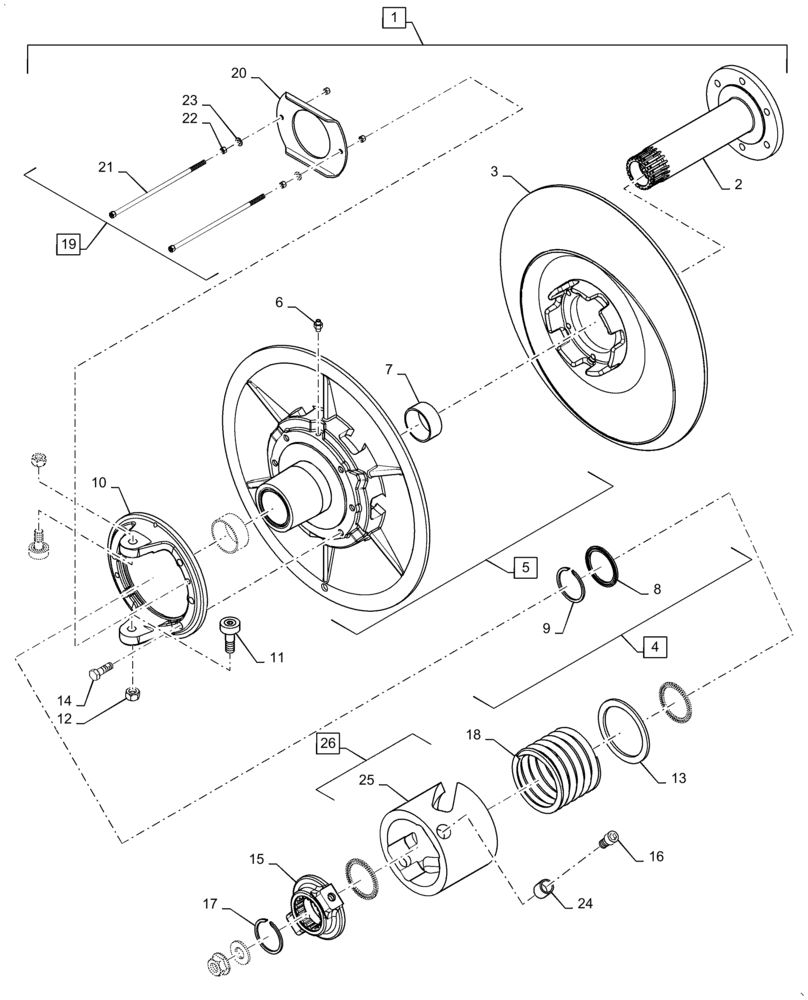

Схема запчастей Case IH AF4088 - (66.260.AV ) - PULLEY ASSY, TORQUE SENSING UNIT (66) - THRESHING
17
5
4
14
2
23
20
21
6
18
25
24
22
12
26
13
8
10
3
16
9
19
15
1
7
11

Артикул

Название

Примечание

Количество

1

84288360

Pulley Assy, Torque Sensing, Incl 2 - 26

PULLEY

1шт.

2

184489C1

HUB

Fixed Half Pulley

1шт.

3

310884A2

HALF-PULLEY

Rotor Driven, Fixed

1шт.

4

310886A1

PULLEY

Assy, Rotor Driven Variable, Incl 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

Assy, Rotor Driven Variable, Incl in 4

1шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Fitting

1шт.

7

188839C93

KIT

Package, Variable Pulley Bushing And Seal

1шт.

8

193965C92

SEAL

3шт.

9

537602R1

RING

Variable Pulley Inner Seal

1шт.

10

1315344C2

HUB

Cam Follower

1шт.

11

86582880

BEARING,15.9 mm ID x 38.1 mm OD x 60.3 mm

2шт.

12

425-1110

NUT,5/8"-18, G5

2шт.

13

188210C91

CAM FOLLOWER

Bearing

1шт.

14

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

15

1315297C2

HUB,20T

Torque Sensing Cam

1шт.

16

194167C1

SCREW,5/8 - 11" x 1"

2шт.

17

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

Hub Cam Follower Retainer

1шт.

18

110844A2

SPRING

Torque Sensing, Rotor Drive

1шт.

19

84288361

Torque Sensing Plate, Incl 20 - 23

PACKING

1шт.

20

1315304C3

PLATE

Spring Compressor

1шт.

21

1319996C3

ROD,Hex, 3/8" -16 x 318mm, Gr 5, W/ Hex Nut

Assy, Torque Sensing Spring

2шт.

22

429-106

NUT,3/8"-16, G8

4шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

24

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

2шт.

25

246818A2

CAM

1шт.

26

246817A2

CAM

Incl 24, 25

1шт.

Выбрано товаров: 26
