Запчасти Case IH AF4088 (66.260.AU[01]) - ROTOR, GEARBOX, MOUNT (66) - THRESHING

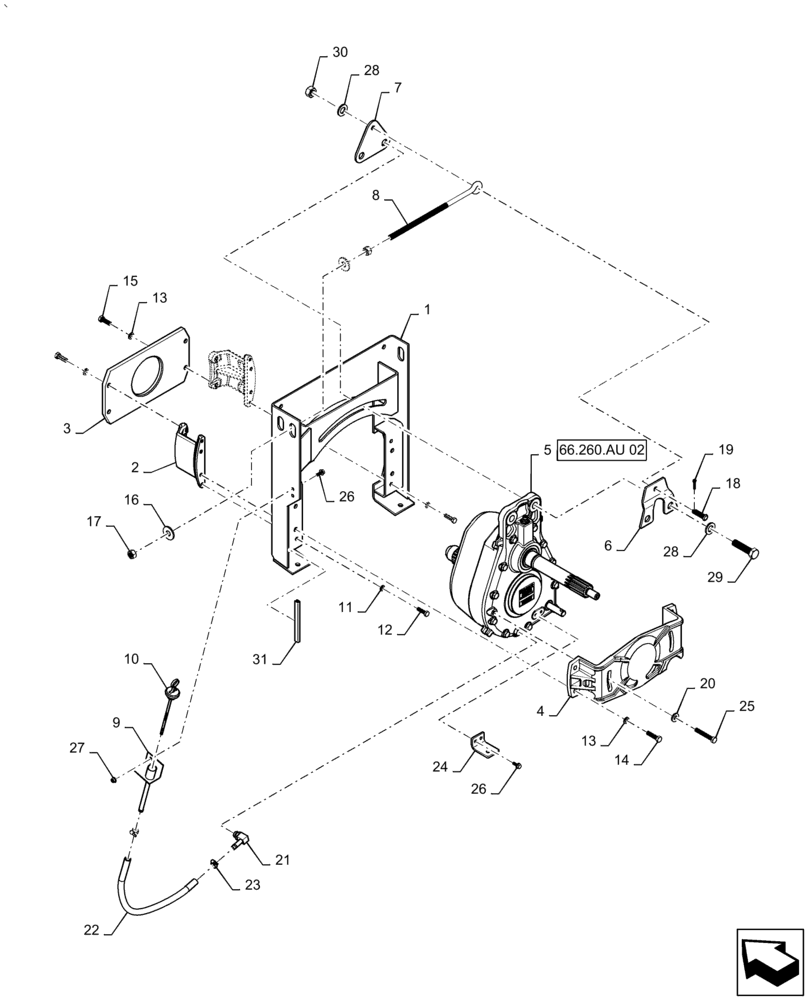

Схема запчастей Case IH AF4088 - (66.260.AU[01]) - ROTOR, GEARBOX, MOUNT (66) - THRESHING
31
2
29
23
28
12
15
26
22
8
18
7
13
25
1
11
13
5
19
10
9
28
16
24
26
3
27
30
66.260.au 02
21
6
20
4
17
14

Артикул

Название

Примечание

Количество

1

84290276

BRACKET

Support Assy, Rotor Gearbox

1шт.

2

47545320

Rotor Gearbox, Front

SUPPORT

2шт.

3

181315C1

PLATE

Gearbox Support, Front

1шт.

4

194058C1

SUPPORT

Rotor Gearbox, Rear

1шт.

5

84332694

GEARBOX

Assy, 2-Speed Rotor Drive

1шт.

6

282906A1

STRAP

Bracket, Rotor Gearbox Support

1шт.

7

84290278

PLATE

Gearbox Adjusting Rod

1шт.

8

47545330

Eyebolt, Rotor Gearbox

EYEBOLT

1шт.

9

193946C1

TUBE,12.7 mm OD

Assy, Gear Case Oil Gage

1шт.

10

194066C91

DIPSTICK

Gage Assy, Rotor Gear Case

1шт.

11

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Helical Spring Lock

4шт.

12

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

13

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

14

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

15

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

16

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

2шт.

17

392530

NUT,M16, Cl 10

2шт.

18

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

1шт.

19

87397

COTTER PIN,3/16" OD x 1" L

1шт.

20

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

21

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

1шт.

22

194043C1

HYDRAULIC HOSE,12.70 mm ID x 483.00 mm

1шт.

23

86625041

HOSE CLAMP,11.2mm - 19.8mm

2шт.

24

100395A1

SUPPORT

Gearbox Shift Lever

1шт.

25

87648725

BOLT,Hex, M12 x 75mm, Cl 10.9

2шт.

26

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

4шт.

27

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

28

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

4шт.

29

9846949

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

2шт.

30

9847024

NUT,M20, Cl 10

2шт.

31

1327979C1

MOLDING

Trim

1шт.

Выбрано товаров: 31
