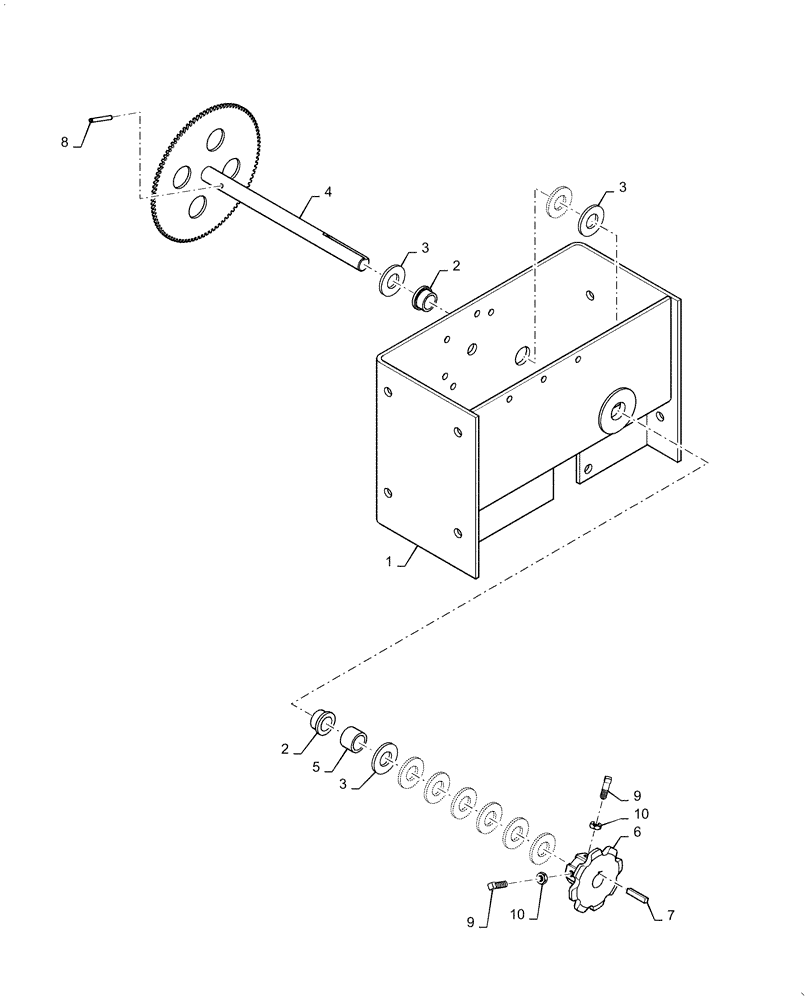

Запчасти Case IH AF4088 (66.260.AS[02]) - SUPPORT, ROTOR, SPEED GOVERNOR (66) - THRESHING

1

84571495

SUPPORT

Assy, Rotor Adjuster Motor

1шт.

2

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

Flange

2шт.

3

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

10шт.

4

84574180

GEAR

Assy, Rotor Speed Adjuster

1шт.

5

84576087

SPACER,0.66" ID x 0.88" OD x 0.62" L

Tube

1шт.

6

84574179

SPROCKET

Control

1шт.

7

Q5024

KEY,3/16" Sq x 1", Par

1шт.

8

86544803

PIN

Slotted

1шт.

9

485-12512

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

2шт.

10

87317425

JAM NUT

2шт.
