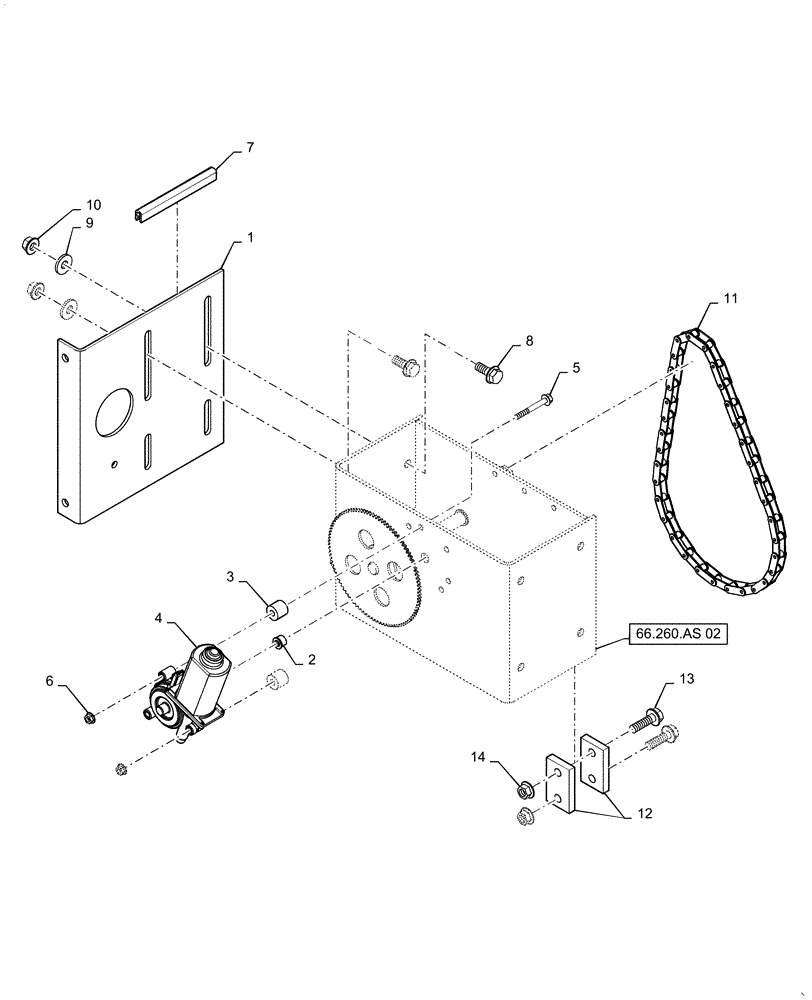

Запчасти Case IH AF4088 (66.260.AS[01]) - ROTOR, SPEED LIMITER, MOTOR (66) - THRESHING

1

194336C2

SUPPORT

Rotor Adjuster Motor, RH

1шт.

2

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

1шт.

3

113485A1

SPACER

Bushing, Motor

2шт.

4

87693674

ELECTRIC MOTOR

Fan And Rotor Speed Adjuster

1шт.

5

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

2шт.

6

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.

7

1545944C1

SEAL

Trim

1шт.

8

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

Flange

4шт.

9

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

11

617107R91

CHAIN,34 Links x 25.4mm = 863.6mm

Assy

1шт.

12

1302173C1

PAD

2шт.

13

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

14

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.
