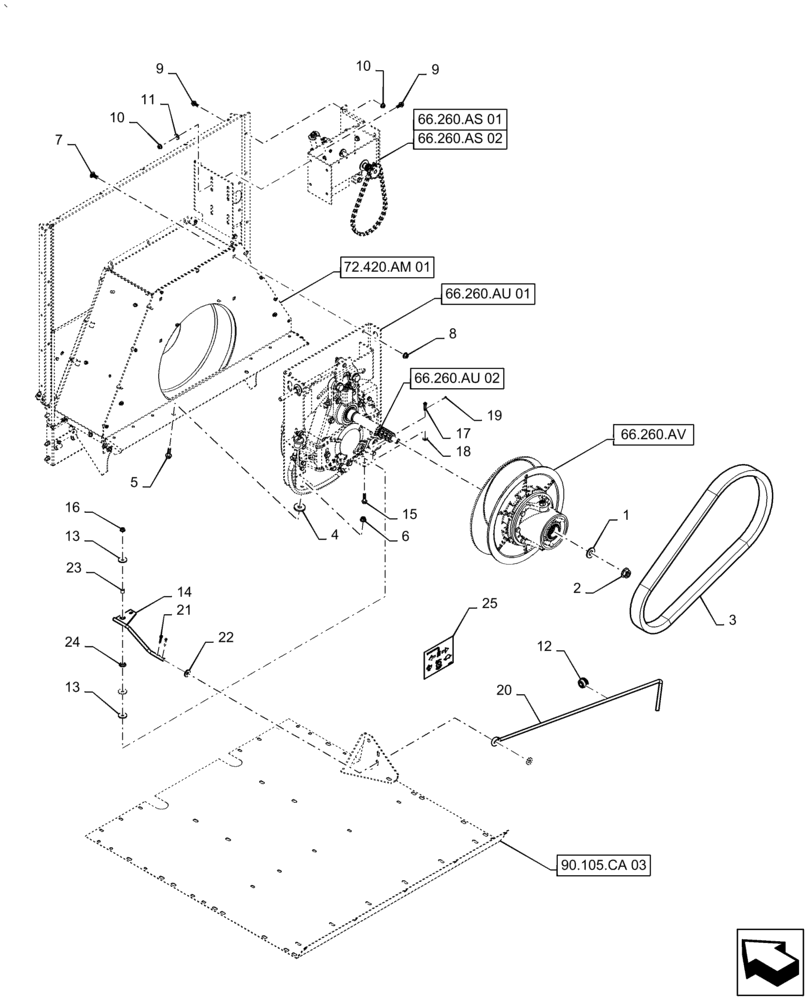

Запчасти Case IH AF4088 (66.260.AO) - ROTOR GEAR, MOUNTING, ASSY CASE (66) - THRESHING

1

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

Front Wheel Outer Bear Retainer

1шт.

2

1315288C1

FLANGE NUT

Prevailing Torque, Sensing Shaft

1шт.

3

84352375

V-BELT

V-belt, Rotor Drive, HN, Inverted

1шт.

4

333040

WASHER,16.5mm ID x 49mm OD x 6mm Thk

2шт.

5

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

6

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

2шт.

7

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

4шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

9

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

11

87613211

WASHER,0.41" ID x 1" OD x 0.12" Thk

4шт.

12

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

13

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

3шт.

14

84299391

LEVER

Assy, 2-Speed Rotor Drain Shift

1шт.

15

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

1шт.

16

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

17

84299263

PIN,7.94mm OD x 36.3mm L

Headed

1шт.

18

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

Flat Steel

1шт.

19

80756

COTTER PIN,1/8" x 3/4"

1шт.

20

186648C2

ROD

Lever Shift Control Linkage

1шт.

21

87397

COTTER PIN,3/16" OD x 1" L

2шт.

22

87393626

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

2шт.

23

1979327C1

SPACER

Rotor Gearcase Shift

1шт.

24

1979265C1

BUSHING

Shift Lever

1шт.

25

144377A1

DECAL

Rotor Control

1шт.
