Запчасти Case IH AF4088 (66.260.AN[02]) - SEPARATOR, JACKSHAFT, SUPPORT (66) - THRESHING

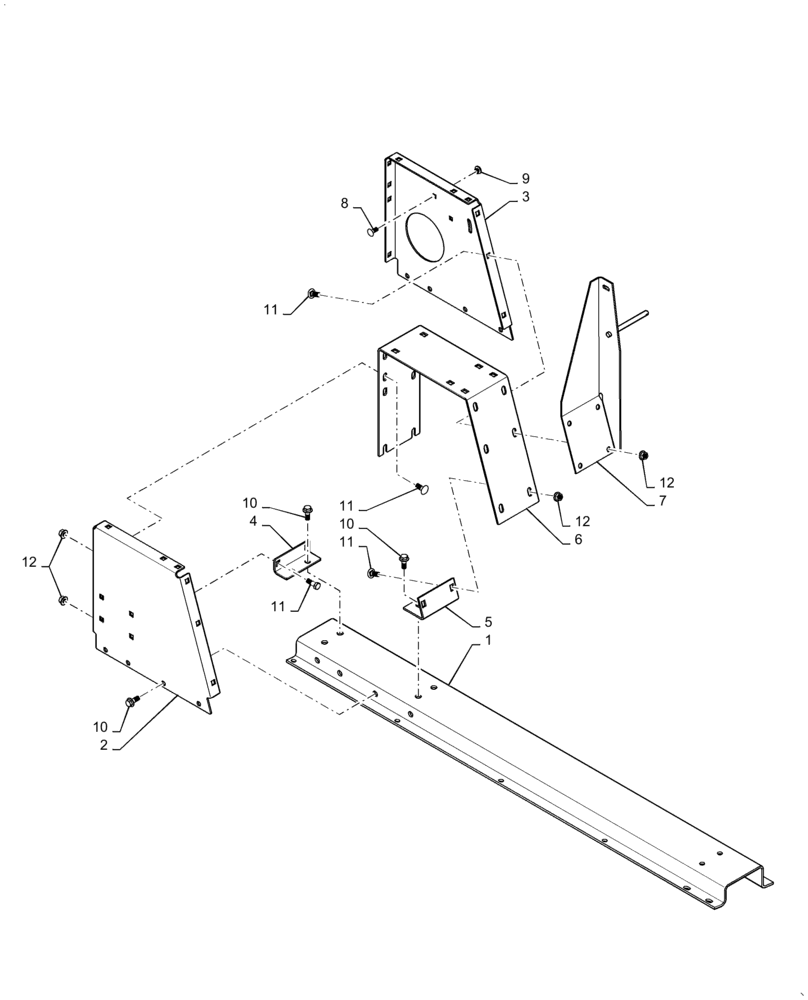

Схема запчастей Case IH AF4088 - (66.260.AN[02]) - SEPARATOR, JACKSHAFT, SUPPORT (66) - THRESHING
12
9
11
11
12
12
7
11
11
3
10
10
5
6
1
10
2
8
4

Артикул

Название

Примечание

Количество

1

84356919

CHANNEL

Assy, Separator Jackshaft Support

1шт.

2

47678821

Separator Jackshaft, RH

SUPPORT

1шт.

3

47678824

Separator Jackshaft, LH

SUPPORT

1шт.

4

181164C2

ANGLE BAR

Separator Jackshaft Support

1шт.

5

47678896

Angle, Separator Jackshaft

ANGLE

1шт.

6

47678828

Gearbox Pedestal, Top

SUPPORT

1шт.

7

84356926

BRACKET

Support Assy, Belt Guide Channel

1шт.

8

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

9

87698854

NUT,M10

Bolt Retainer

1шт.

10

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

Flange

12шт.

11

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

10шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

Выбрано товаров: 12
