Запчасти Case IH AF4088 (66.110.AF[02]) - CONTROL SHAFT, CONCAVE, MANUAL (66) - THRESHING

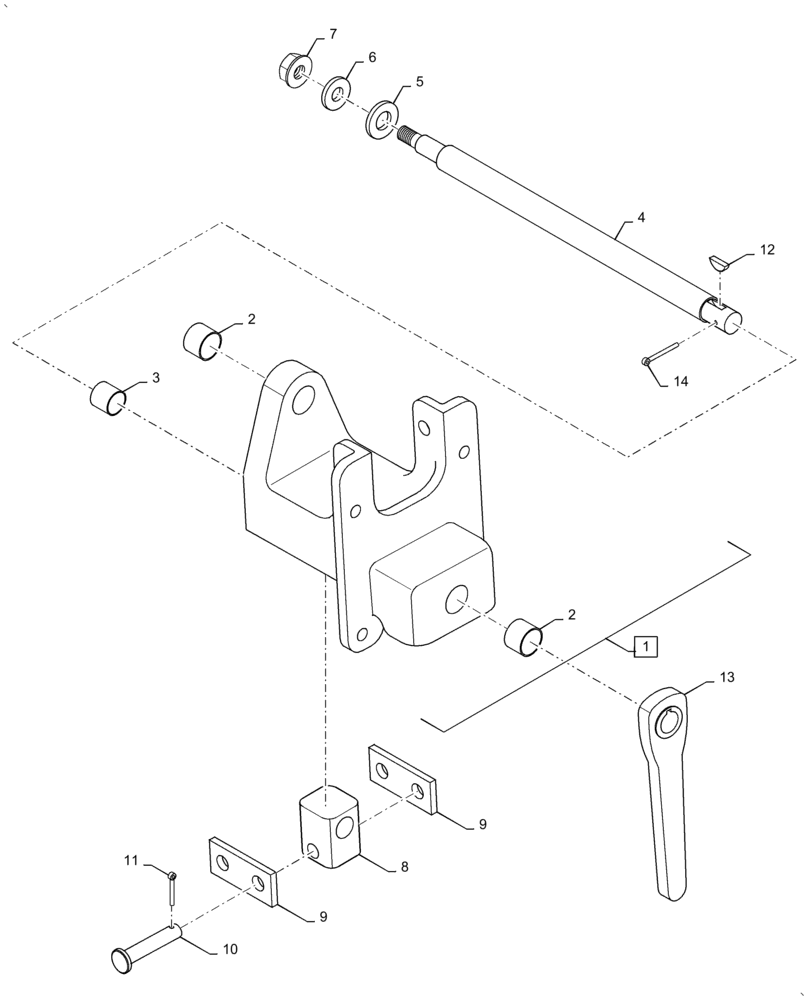

Схема запчастей Case IH AF4088 - (66.110.AF[02]) - CONTROL SHAFT, CONCAVE, MANUAL (66) - THRESHING
9
2
2
3
9
5
7
12
11
4
13
14
1
10
8
6

Артикул

Название

Примечание

Количество

1

142607A2

HOUSING

Assy, Concave Control, Incl 2, 3, Use for 2015

1шт.

1

47565705

Assy, Concave Control, Incl 2, 3, Use from 2016

HOUSING

1шт.

2

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

Main Drive Knuckle

2шт.

3

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

1шт.

4

47745599

Concave Manual

CONTROL SHAFT

1шт.

5

13580121

WASHER,16.4mm ID x 32mm OD x 4mm Thk

1шт.

6

12648521

WASHER,12.2mm ID x 28mm OD x 4mm Thk

1шт.

7

86619803

FLANGE NUT

1шт.

8

47497306

Concave Control Adjusting

NUT

1шт.

9

47497307

Link Concave Control Upper

PLATE

2шт.

10

84018348

CLEVIS PIN,M12 x 60mm OAL

1шт.

11

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

12

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

13

170282C1

HANDLE

Concave Control Ratchet

1шт.

14

130005

COTTER PIN,M3.2 x 32

1шт.

Выбрано товаров: 15
