(66.105.AO[02]) - CONCAVE, WIRE LARGE

Запчасти Case IH AF4088 (66.105.AO[02]) - CONCAVE, WIRE LARGE (66) - THRESHING

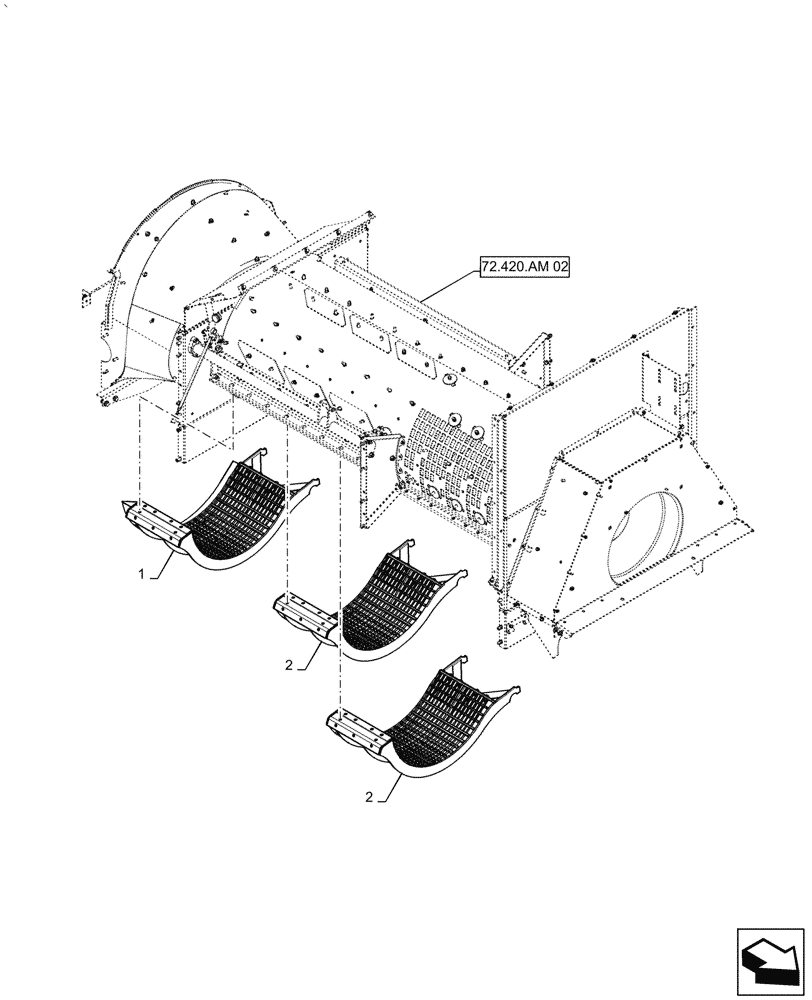

Схема запчастей Case IH AF4088 - (66.105.AO[02]) - CONCAVE, WIRE LARGE (66) - THRESHING
72.420.am 02
2
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

430964A1

CONCAVE

Concave Assy, Large Wire Front, Use for 2015

1шт.

1

47911478

Weld Assy, Large Wire Front, Use from 2016

CONCAVE

1шт.

2

430965A1

CONCAVE

Assy, Large Wire 2 Or 3, Use for 2015

2шт.

2

47911480

Weld Assy, Large Wire 2 Or 3, Use from 2016

CONCAVE

2шт.

Выбрано товаров: 4
