(66.105.AO[01]) - CONCAVE, SMALL WIRE

Запчасти Case IH AF4088 (66.105.AO[01]) - CONCAVE, SMALL WIRE (66) - THRESHING

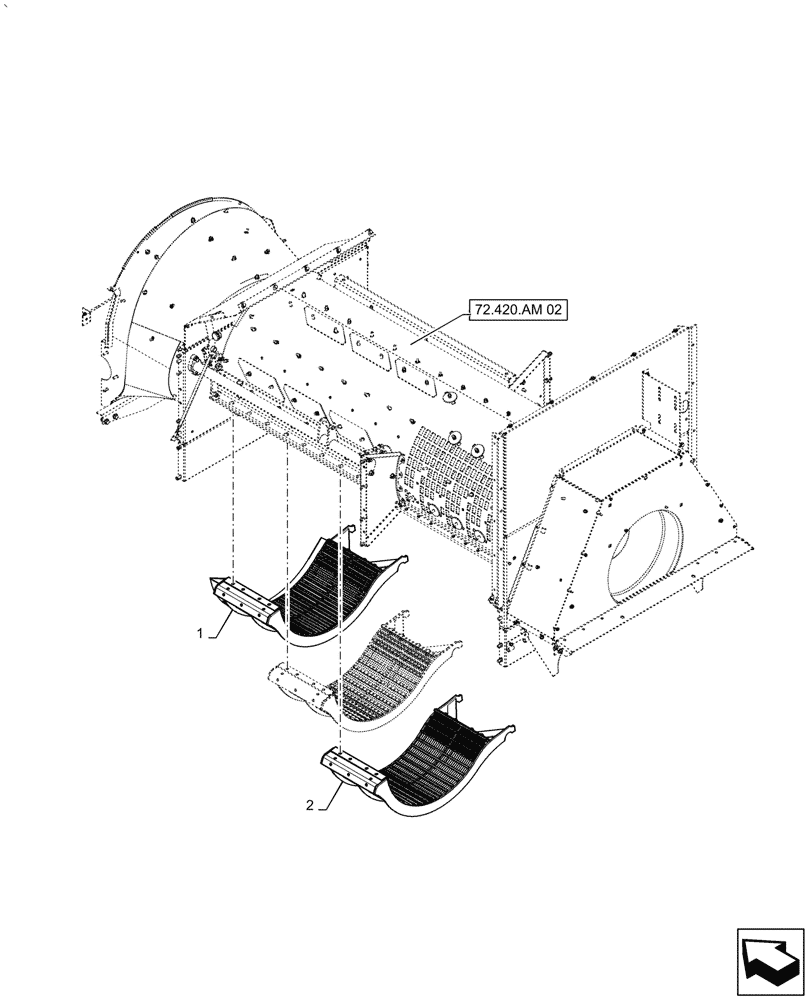

Схема запчастей Case IH AF4088 - (66.105.AO[01]) - CONCAVE, SMALL WIRE (66) - THRESHING
72.420.am 02
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

430960A1

CONCAVE

Assy, Small Wire Front With High Tension, Use for 2015

1шт.

1

47911481

Weld Assy, Small Wire Front With High Tension, Use from 2016

CONCAVE

1шт.

2

430962A1

CONCAVE

Assy, Small Wire 2 Or 3 With High Tension, Use for 2015

2шт.

2

47911483

Weld Assy, Small Wire 2 Or 3 With High Tension, Use from 2016

CONCAVE

2шт.

Выбрано товаров: 4
