Запчасти Case IH AF4088 (66.101.AP [01]) - CONE, FEEDER, STANDARD (66) - THRESHING

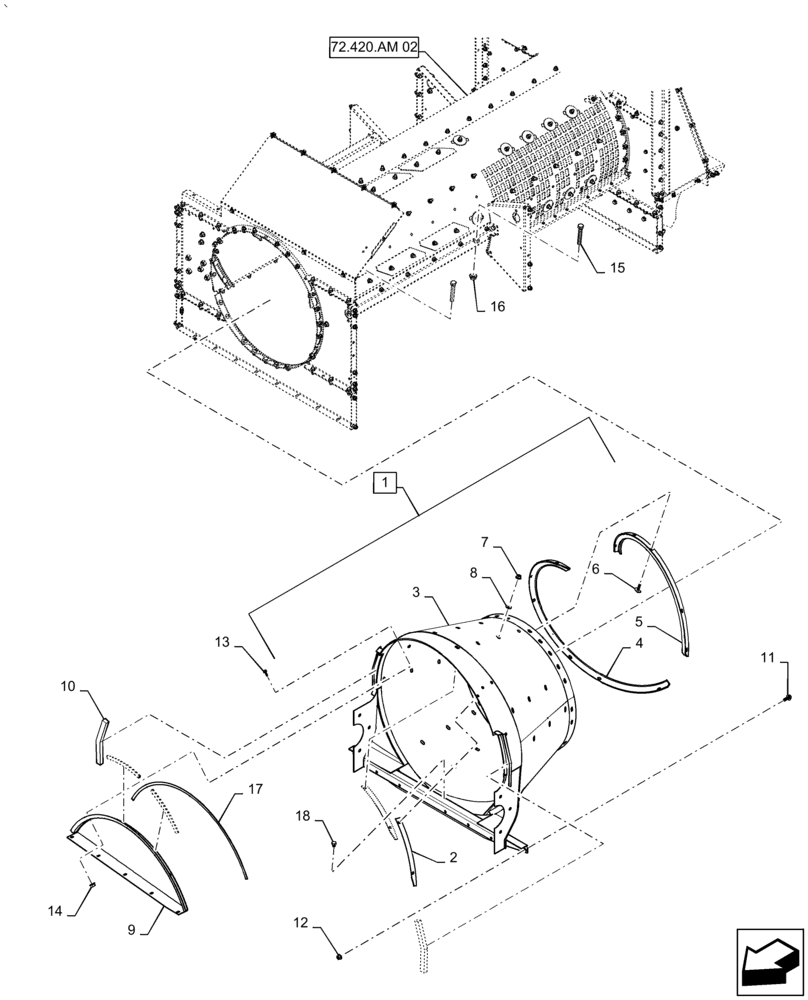

Схема запчастей Case IH AF4088 - (66.101.AP [01]) - CONE, FEEDER, STANDARD (66) - THRESHING
5
2
16
18
12
9
15
14
4
7
6
13
8
72.420.am 02
1
3
17
11
10

Артикул

Название

Примечание

Количество

1

84265385

CONE

Assy, Rotor Transition Extension Wear Van, Incl 2 - 8

1шт.

2

373271A1

CONE

Assy Transition, Headed

1шт.

3

249252A2

VANE

Cone Front, Extension Wear

2шт.

4

249254A2

VANE

Cone Long, Extension Wear

4шт.

5

249257A2

VANE

Cone Short, Extension Wear

1шт.

6

87106338

BOLT

Tee

33шт.

7

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

33шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

33шт.

9

47745598

Rotor Front

DOOR

1шт.

10

233482A1

DOOR SEAL,380mm L

Rotor Front Bearing LH, RH

2шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

Flange

4шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

2шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

15

359211

BOLT,M16 x 2.0 x 150mm, Cl 8.8

2шт.

16

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

17

419957A1

SEAL

Rear Service Deck Connection See

1шт.

18

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1шт.

Выбрано товаров: 18
