Запчасти Case IH AF4088 (60.150.AY[02]) - CLUTCH, FEEDER, CONVEYOR, STANDARD (60) - PRODUCT FEEDING

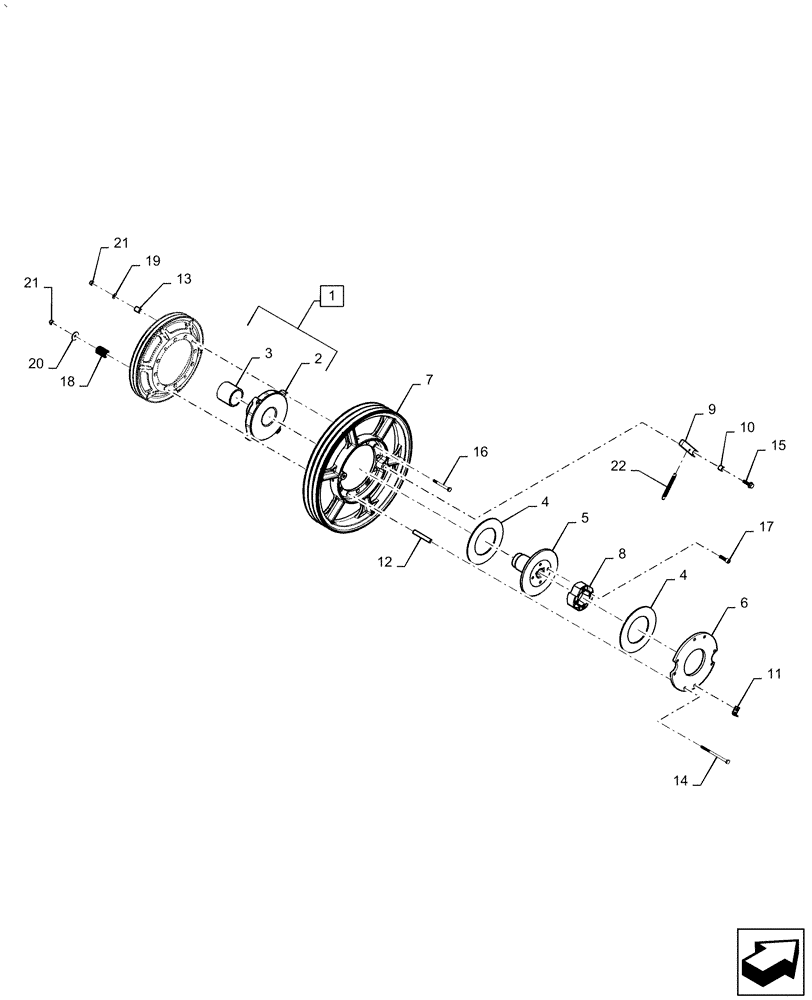

Схема запчастей Case IH AF4088 - (60.150.AY[02]) - CLUTCH, FEEDER, CONVEYOR, STANDARD (60) - PRODUCT FEEDING
16
11
1
21
12
10
15
17
14
2
3
21
8
9
4
5
18
19
20
22
6
4
7
13

Артикул

Название

Примечание

Количество

1

87347420

Assy, Outer Friction Clutch, Incl 3, 4

HUB

1шт.

2

87347422

Outer Friction Clutch

HUB

1шт.

3

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

1шт.

4

84151259

LINING

Disc, Clutch, Friction

2шт.

5

87347423

Inner, Feeder Reverser Clutch

HUB

1шт.

6

87726043

PLATE ASSY.

Outer, Feeder Reverser Clutch

1шт.

7

87729260

PULLEY,573mm OD

Feeder Clutch, Outer

1шт.

8

87347431

Feeder Reverser

RATCHET

1шт.

9

87730813

BAR

Ratchet, Feeder, Reverser Clutch

2шт.

10

87752993

DRIVE BUSHING

Reverser Ratchet

2шт.

11

86988966

MOUNTING PLATE

Angle

2шт.

12

87386411

SPACER

Feeder, Friction Clutch

8шт.

12

87375192

Feeder, Friction Clutch

SPACER

1шт.

13

87374324

SPACER,11.1mm ID x 19.05mm OD x 25mm L

Drive Lug

4шт.

13

87374323

Drive Lug

SPACER

1шт.

14

87665088

BOLT

8шт.

15

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

16

86508620

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

17

14422221

HEX SOC SCREW,M12 x 40mm, Cl 8.8

4шт.

18

1305692C2

SPRING

8шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

20

495-81143

WASHER,13/32" x 1 1/2" x .120"

8шт.

21

86512554

NUT,M10 x 1.5, Cl 10

12шт.

22

86989592

SPRING

2шт.

Выбрано товаров: 24
