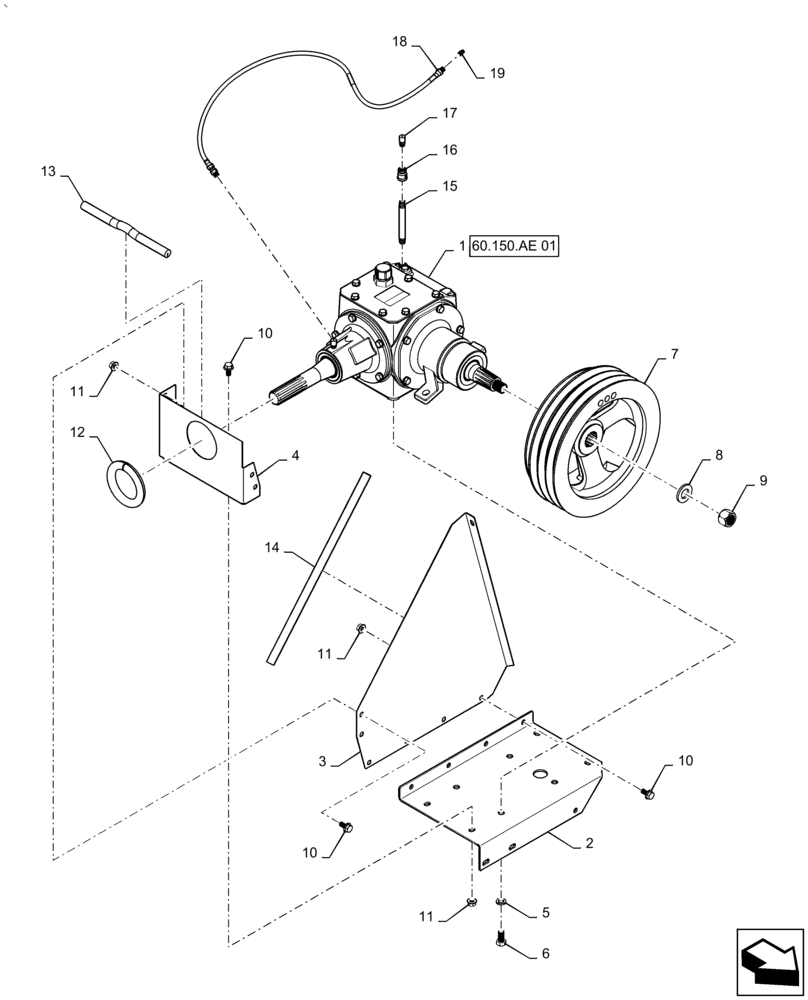

Запчасти Case IH AF4088 (60.150.AU[01]) - GEARBOX ASSY, FEEDER DRIVE (60) - PRODUCT FEEDING

1

84225968

GEARBOX

Assy, Forward Drive, Lowercase

1шт.

2

47539639

Forward Gearbox, Lower

SUPPORT

1шт.

3

47539640

Forward Gearbox, Inner

PANEL

1шт.

4

47539641

Forward Gearbox, Rear

SUPPORT

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

7

84325544

PULLEY

Forward Drive

1шт.

8

87613300

WASHER,0.94" ID x 1.75" OD x 0.18" Thk

Hardened

1шт.

9

87301257

NUT,7/8"-14, GC

Prevailing Torque, All Material

1шт.

10

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

8шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

12

191496C1

SEALING STRIP

1шт.

13

191497C1

SEALING STRIP

1шт.

14

84228016

RUBBER SEAL

Cutter

1шт.

15

221-1142

PIPE,Nipple, 1/4" NPT x 4 1/2"

1шт.

16

221-1344

COUPLING

1шт.

17

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

Fitting, Lube

1шт.

17

219-430

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

1шт.

18

1339006C1

TUBE,914 mm L

1шт.

19

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

Fitting, Taper Light

1шт.
