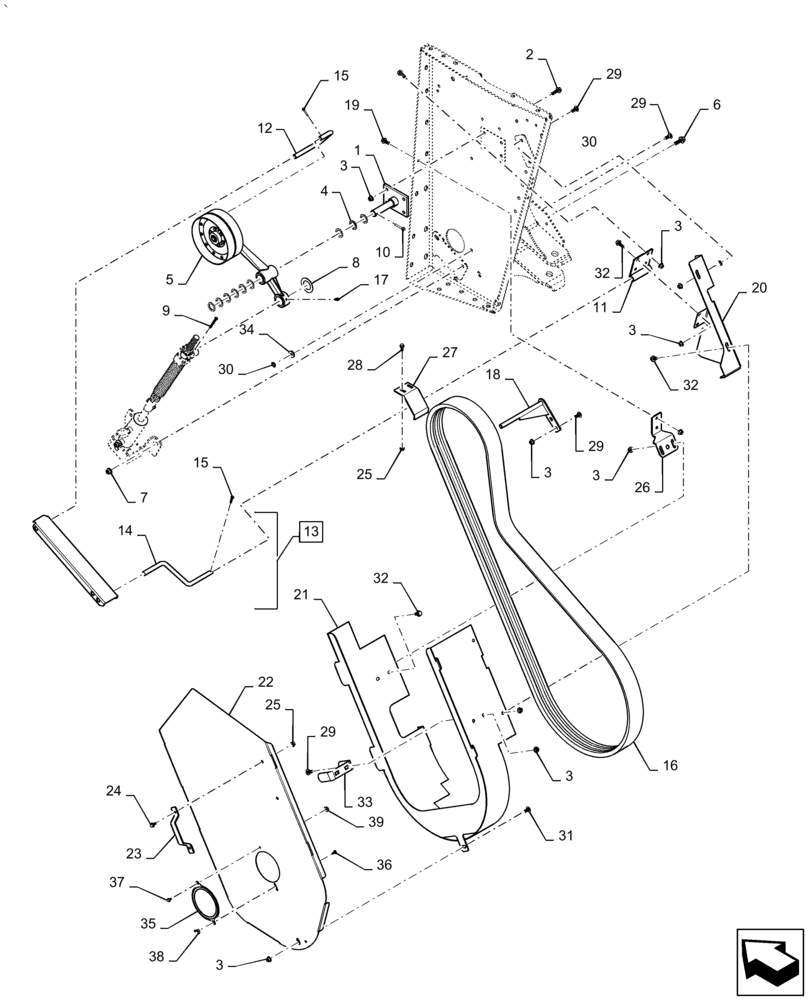

Запчасти Case IH AF4088 (60.150.AQ[01]) - FEEDER DRIVE, ASSY WITH OUT ROCK TRAP (60) - PRODUCT FEEDING

1

47545812

Assy, Feeder Drive Idler Pivot

SHAFT

1шт.

2

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

4шт.

3

86050279

FLANGE NUT,M10 x 1.5, Cl 10

22шт.

4

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

9шт.

5

87519419

ARM

Assy, Feeder Drive Idler, Use for 2016

1шт.

6

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

2шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

8

87613242

WASHER,1.53" ID x 2.5" OD x 0.06" Thk

Use for 2016

1шт.

8

87613216

WASHER,0.66" ID x 1" OD x 0.06" Thk

Use from 2017

1шт.

9

86523959

COTTER PIN,3/16" x 2 1/2"

Steel, Use for 2016

1шт.

9

439-11048

HEADED PIN,5/8" x 3"

Use from 2017

1шт.

10

80753

COTTER PIN,1/4" x 1 1/2"

Steel

1шт.

11

87712042

BRACKET

Belt Guide, Pivot

1шт.

12

47545816

Feeder Belt Retainer

ROD

1шт.

13

87377051

BRACKET

Retainer Assy, Feeder Belt Without Rock Trap, Incl 14

1шт.

14

194359C1

Tightener

ROD

1шт.

15

87397

COTTER PIN,3/16" OD x 1" L

Steel

4шт.

16

87629602

V-BELT,22.23mm W x 3722.60mm L

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting, Taper Light

1шт.

18

84298205

ROD

Assy, Feeder Drive Belt Trap

1шт.

19

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

20

87712046

BRACKET

Support, Feeder Belt Guide

1шт.

21

47732851

Weld Assy, Feeder Drive Belt, Use for 2016

GUIDE

1шт.

21

47882284

Weld Assy, Feeder Drive Belt, Use from 2017

GUIDE

1шт.

22

47619735

Feeder Drive Belt

COVER

1шт.

23

87735697

LATCH

Handle, Door

1шт.

24

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Flange

2шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

26

47683325

Feeder Belt Guide, Rear

SUPPORT

1шт.

27

87742029

SUPPORT

Bracket, Upper Belt Guide

1шт.

28

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

2шт.

29

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

7шт.

30

87698854

NUT,M10

Bolt Retainer

3шт.

31

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

1шт.

32

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

33

84481537

GUIDE

Feeder Drive Belt

1шт.

34

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

1шт.

35

188315C1

DOOR

Drive Belt Cover Access

1шт.

36

847-3616

SERRATED SCREW,Sl Truss, M6 x 16mm, Cl 10.9

1шт.

37

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

Flange

1шт.

38

84814892

WING NUT,M6 x 1.0

1шт.

39

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.
