Запчасти Case IH AF4088 (60.150.AE[01]) - GEARBOX, ASSY, FEEDER, DRIVE (60) - PRODUCT FEEDING

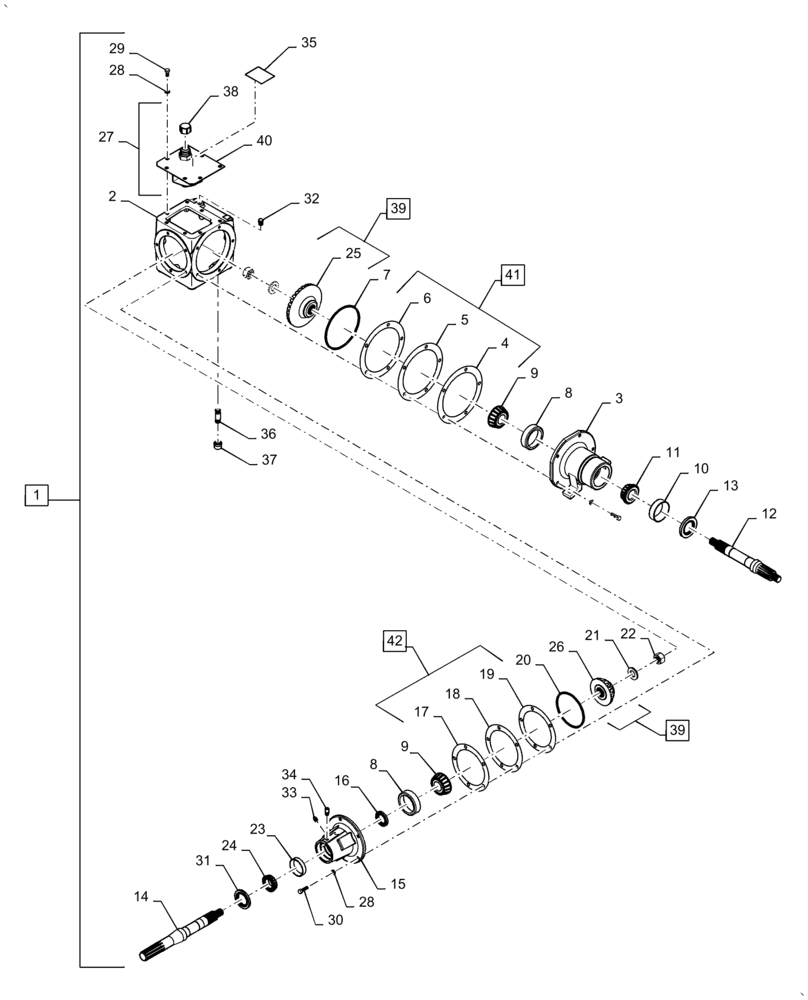

Схема запчастей Case IH AF4088 - (60.150.AE[01]) - GEARBOX, ASSY, FEEDER, DRIVE (60) - PRODUCT FEEDING
3
30
24
7
8
17
9
42
14
32
39
19
34
28
36
37
9
29
12
23
6
11
26
15
22
13
38
10
41
8
20
31
18
39
28
5
33
16
40
35
27
21
4
1
2
25

Артикул

Название

Примечание

Количество

1

84225968

GEARBOX

Assy, Forward Drive, Incl 2 - 42

1шт.

2

396086A1

Case, Gear

HOUSING

1шт.

3

390549A1

HOUSING

1шт.

4

191366C1

SHIM,166.88mm ID x 215.9mm OD x 0.13mm Thk

2шт.

5

191367C1

SHIM,166.88mm ID x 215.9mm OD x 0.18mm Thk

2шт.

6

191368C1

SHIM,166.88mm ID x 215.9mm OD x 0.5mm Thk

2шт.

7

272712

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

8

57861H

BEARING CUP

2шт.

9

390952A1

BEARING CONE,34.92mm ID x 30.16mm W

Cone

2шт.

10

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

Cup

1шт.

11

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

Cone

1шт.

12

191384C2

SHAFT

Output - Driven

1шт.

13

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

Forward Gear Case Output

1шт.

14

191396C1

SHAFT

Forward Gear Case Input

1шт.

15

390547A1

HOUSING

1шт.

16

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

1шт.

17

194548C1

SHIM,135.1mm ID x 177.8mm OD x 0.13mm Thk

2шт.

18

194549C1

SHIM,135.1mm ID x 177.8mm OD x 0.18mm Thk

2шт.

19

194550C1

SHIM,135.1mm ID x 177.8mm OD x 0.5mm Thk

2шт.

42

195484C2

SHIM KIT

Forward Drive, Incl 17, 18, 19

1шт.

20

510828

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

21

87613300

WASHER,0.94" ID x 1.75" OD x 0.18" Thk

2шт.

22

185413C1

LOCK NUT

Security Lock

2шт.

23

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

24

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

Cone

1шт.

25

1315599C1

GEAR

2шт.

26

1315598C1

GEAR

2шт.

27

391647A1

PLATE

Assy, Incl 38, 40

1шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

17шт.

29

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

30

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

10шт.

31

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

Forward Gear Case Input

1шт.

32

86568834

PLUG,1/4" - 18 NPT

1шт.

33

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

Fitting

1шт.

34

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

Fitting, Lube

1шт.

34

219-430

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

Fitting

1шт.

35

398282A1

Label, Serial Number Forward Gear case

DECAL

1шт.

36

188126

PIPE,Nipple, 3/8" NPT x 2"

Nipple

1шт.

37

221-1524

CAP,3/8" NPT

1шт.

38

353-198

CAP

1шт.

39

1315597C1

GEAR SET

Incl 25

1шт.

40

391650A1

PLATE

1шт.

41

195485C1

SHIM KIT

Forward Drive, RH Bell Housing, Incl 4 - 6

1шт.

42

195484C2

SHIM KIT

Forward Drive, Incl 17, 18, 19

1шт.

Выбрано товаров: 44
