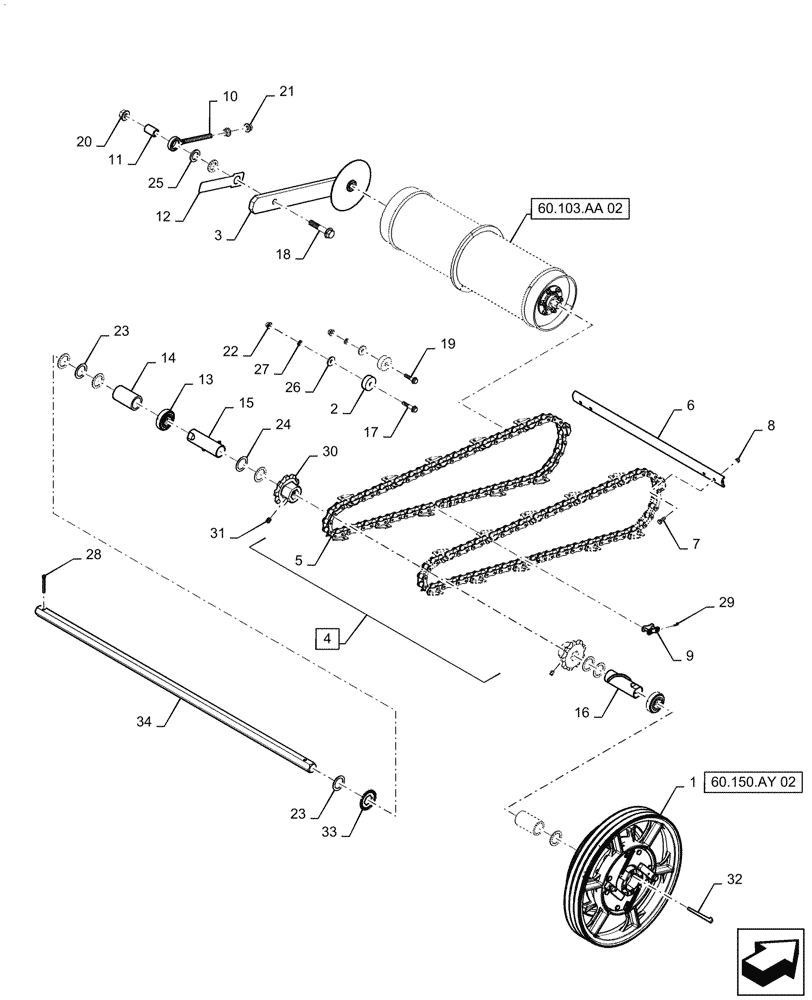

Запчасти Case IH AF4088 (60.150.AD[02]) - CONVEYOR, FEEDER, TRAP, ROCK GUARD, STD (60) - PRODUCT FEEDING

1

47481920

Assy, Feeder Jackshaft, Standard, Use for 2015

CLUTCH

1шт.

1

47484913

Assy, Feeder Jackshaft, Standard, Use from 2016

CLUTCH

1шт.

2

87389815

SPACER,13.5mm ID x 57.2mm OD x 20mm L

Feeder Drum Stop

4шт.

2

87365516

SPACER

1шт.

3

87687030

ARM ASSY.

Weld, Conveyor, Case

2шт.

4

47481829

Assy, Feeder Serrated, Incl 5 - 8, Use for 2015

CONVEYOR

1шт.

4

47930769

Assy, Feeder Serrated, Incl 5 - 8, Use for 2016

CONVEYOR

1шт.

4

48005015

Assy, Feeder Serrated, Incl 5 - 8, Use from 2017

CONVEYOR

1шт.

5

47930767

557 Roller, Use for 2016

CHAIN

2шт.

5

47930767

557 Roller, Use from 2017

CHAIN

3шт.

6

84281181

SLAT

Slat Conveyor, Serrated, Use from 2016

11шт.

6

NSS

NOT SOLD SEPARAT

Slat Conveyor, Serrated, Incl in 4, Use from 2017

11шт.

7

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

Use for 2016

44шт.

7

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

Use from 2017

66шт.

8

84207195

NUT,M10 x 1.5

Conveyor, Use for 2016

44шт.

8

84207195

NUT,M10 x 1.5

Conveyor, Use from 2017

66шт.

9

377158A1

LINK

Assy, Heavy Chrome Center Connecting, Use for 2015

2шт.

9

84257096

LINK,41.4mm Pitch, Threaded Pin

Assy, Heavy Chrome Center Connecting, Use from 2016

2шт.

10

47544455

Eye, Plated

EYEBOLT

2шт.

11

87688473

SPACER,21mm ID x 31.75mm OD x 47.7mm L

Bushing, Arm, Hardened

2шт.

12

84359856

STRAP

Shield, Feeder Side

2шт.

13

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

Assy

2шт.

14

47509062

Feeder Jackshaft

SPACER

2шт.

15

178780C3

SPACER

Feeder Sprocket - LH

1шт.

16

178781C3

SPACER

Feeder Sprocket - RH

1шт.

17

84148135

BOLT

Flange Assy

2шт.

17

87301277

BOLT,M12 x 71.8mm, Cl 10.9

1шт.

18

84163827

BOLT,M20 x 118.9mm OAL, Cl 10.9

2шт.

19

87670764

BOLT,M12 x 61.8mm, Cl 10.9

2шт.

20

86512499

FLANGE NUT,M20 x 2.5, Cl 10

2шт.

21

86512498

FLANGE NUT,M16 x 2, Cl 10

4шт.

22

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

23

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

5шт.

24

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

4шт.

25

495-82234

WASHER,32.54mm ID x 50.8mm OD x 6.1mm Thk

4шт.

26

495-81162

WASHER,17/32" x 1 1/2" x .179"

4шт.

27

492-11050

LOCK WASHER,1/2"

4шт.

28

432-2040

COTTER PIN,5/16" x 2 1/2"

2шт.

29

1329837C2

PIN,2.63mm OD

Roller Chain, Use from 2016

4шт.

30

1970248C1

SPROCKET ASSY.

Feeder Chain, Use for 2015

2шт.

30

47860912

Assy, Feeder Chain, Use from 2016

SPROCKET

2шт.

31

197643C1

SET SCREW

4шт.

32

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

33

47509006

Feeder Speed Pickup

DISC

1шт.

34

47481901

Feeder Conveyor

SHAFT

1шт.
