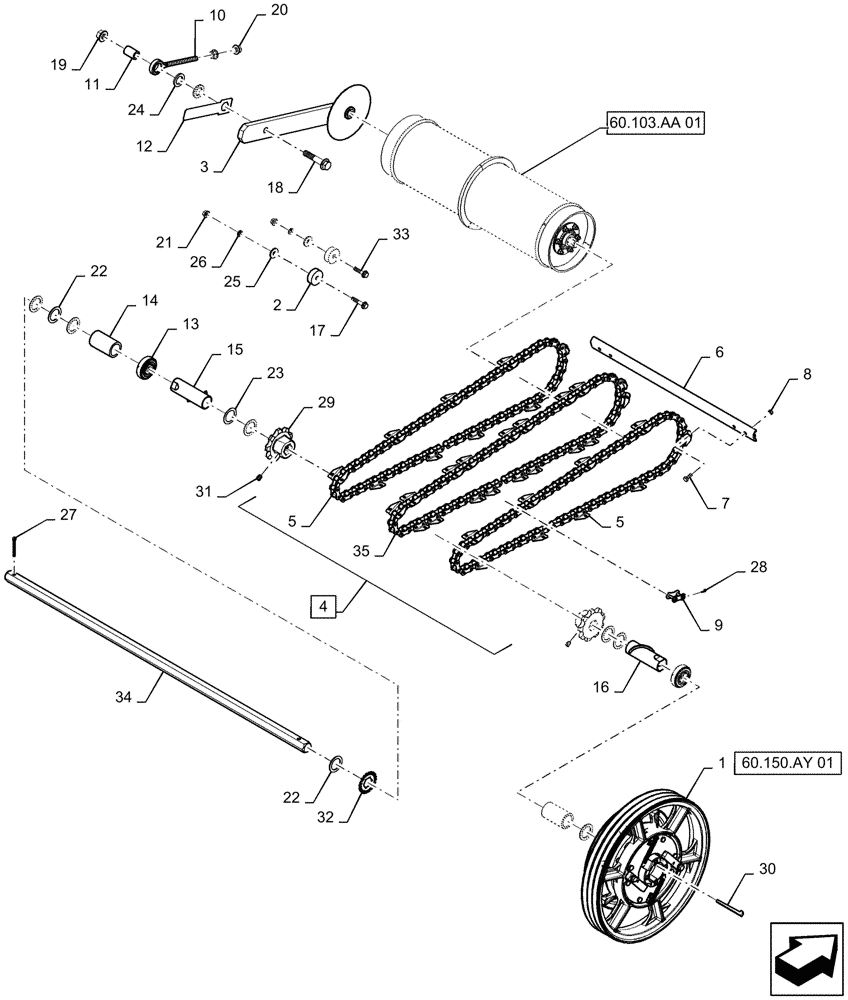

Запчасти Case IH AF4088 (60.150.AD[01]) - CONVEYOR, FEEDER, TRAP, ROCK GUARD, ROCK GUARD, HD (60) - PRODUCT FEEDING

1

47484913

Assy, Feeder Jackshaft

CLUTCH

1шт.

2

87389815

SPACER,13.5mm ID x 57.2mm OD x 20mm L

Feeder Drum Stop

4шт.

2

87365516

Feeder Drum Stop

SPACER

1шт.

3

87687030

ARM ASSY.

Weld Assy, Conveyor

2шт.

4

47481829

Assy, Feeder Serrated, Incl 5 - 8,Use Up Old On Old.

CONVEYOR

1шт.

4

47930769

This New Part Must Be, Use For 2016.

CONVEYOR

1шт.

4

47996696

This New Part Must Be, Use From 2017.

CONVEYOR

1шт.

5

NSS

NOT SOLD SEPARAT

Chain, Roller, Incl In 4, Use For 2016.

2шт.

5

47996699

Roller, Incl In 4, Use From 2017.

CHAIN

2шт.

6

84281181

SLAT

Conveyor, Serrated, Use For 2016.

11шт.

6

47996700

Conveyor, Serrated, Use From 2017

18шт.

7

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

Use For 2016

44шт.

7

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

Use From 2017

72шт.

8

84207195

NUT,M10 x 1.5

Conveyor, Use For 2016.

44шт.

8

84207195

NUT,M10 x 1.5

Conveyor, Use From 2017.

72шт.

9

377158A1

LINK

Assy, Heavy Chrome Center Connecting, Use For 2015

2шт.

9

84257096

LINK,41.4mm Pitch, Threaded Pin

Assy, Heavy Chrome Center Connecting, Use From 2016

2шт.

10

47544455

Use For 2015

EYEBOLT

1шт.

10

47544455

Use From 2016

EYEBOLT

2шт.

11

87688473

SPACER,21mm ID x 31.75mm OD x 47.7mm L

Bushing, Arm, Hardened

2шт.

12

84359856

STRAP

Shield, Feeder Side

2шт.

13

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

Assy

2шт.

14

47509062

Feeder Jackshaft

SPACER

2шт.

15

178780C3

SPACER

Feeder Sprocket, LH

1шт.

16

178781C3

SPACER

Feeder Sprocket, RH

1шт.

17

84148135

BOLT

Flange Assy

2шт.

17

87301277

BOLT,M12 x 71.8mm, Cl 10.9

1шт.

18

84163827

BOLT,M20 x 118.9mm OAL, Cl 10.9

Flange

2шт.

19

86512499

FLANGE NUT,M20 x 2.5, Cl 10

2шт.

20

86512498

FLANGE NUT,M16 x 2, Cl 10

4шт.

21

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

22

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

5шт.

23

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

Use For 2015

4шт.

23

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

Use From 2016

2шт.

24

495-82234

WASHER,32.54mm ID x 50.8mm OD x 6.1mm Thk

4шт.

25

495-81162

WASHER,17/32" x 1 1/2" x .179"

4шт.

26

492-11050

LOCK WASHER,1/2"

4шт.

27

432-2040

COTTER PIN,5/16" x 2 1/2"

2шт.

28

1329837C2

PIN,2.63mm OD

Roller Chain, Use For 2016

4шт.

29

1970248C1

SPROCKET ASSY.

Feeder Chain, Use For 2015

2шт.

29

47860912

Feeder Chain, Use From 2016

SPROCKET

2шт.

30

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

31

197643C1

SET SCREW

4шт.

32

47509006

Feeder Speed Pickup

DISC

1шт.

33

87670764

BOLT,M12 x 61.8mm, Cl 10.9

2шт.

34

47481901

Feeder Conveyor

SHAFT

1шт.

35

48058464

Assy, 557 Roller, Use From 2017

CHAIN

1шт.
