Запчасти Case IH AF4088 (60.130.AJ) - FEEDER DRIVE CLEANING (60) - PRODUCT FEEDING

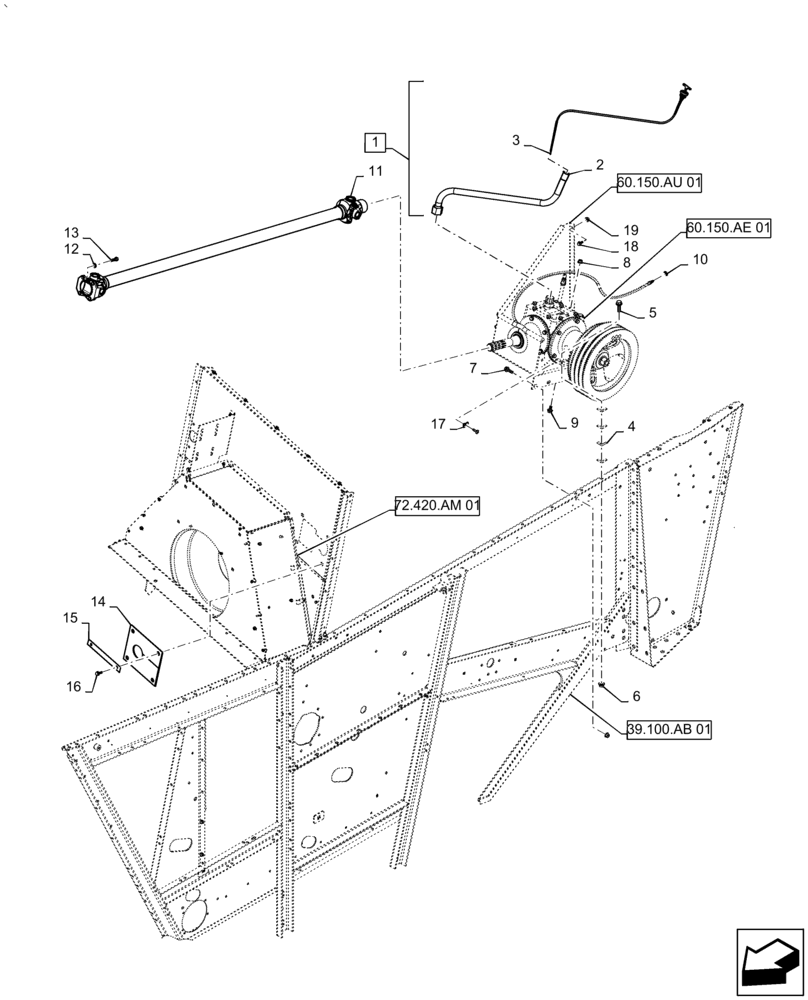

Схема запчастей Case IH AF4088 - (60.130.AJ) - FEEDER DRIVE CLEANING (60) - PRODUCT FEEDING
19
9
5
10
8
72.420.am 01
1
17
60.150.ae 01
18
2
12
60.150.au 01
4
7
15
6
13
14
39.100.ab 01
11
16
3

Артикул

Название

Примечание

Количество

1

376278A1

DIPSTICK

Assy, Incl 2, 3

1шт.

2

122113A1

TUBE

Assy

1шт.

3

336513A1

DIPSTICK

With Out Vent

1шт.

4

935915R1

SHIM,33.02mm OD x 0.38mm Thk

8шт.

5

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

7

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

3шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

9

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1шт.

11

443298A1

DRIVE SHAFT

Separator Jackshaft

1шт.

12

81547

LOCK WASHER,7/16"

Lock

4шт.

13

86505834

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8, Full Thd

4шт.

14

191191C2

GASKET,6.35mm Thk

Driveline Dust

1шт.

15

47560505

Seal Reinforcement

STRIP

2шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

17

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

18

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

Flange

1шт.

19

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

Выбрано товаров: 19
